通信接口：RS485
工作頻率：2.4GHz
藍牙協議：BLE5.2
通信距離：560m
產品尺寸：102*28*27mm

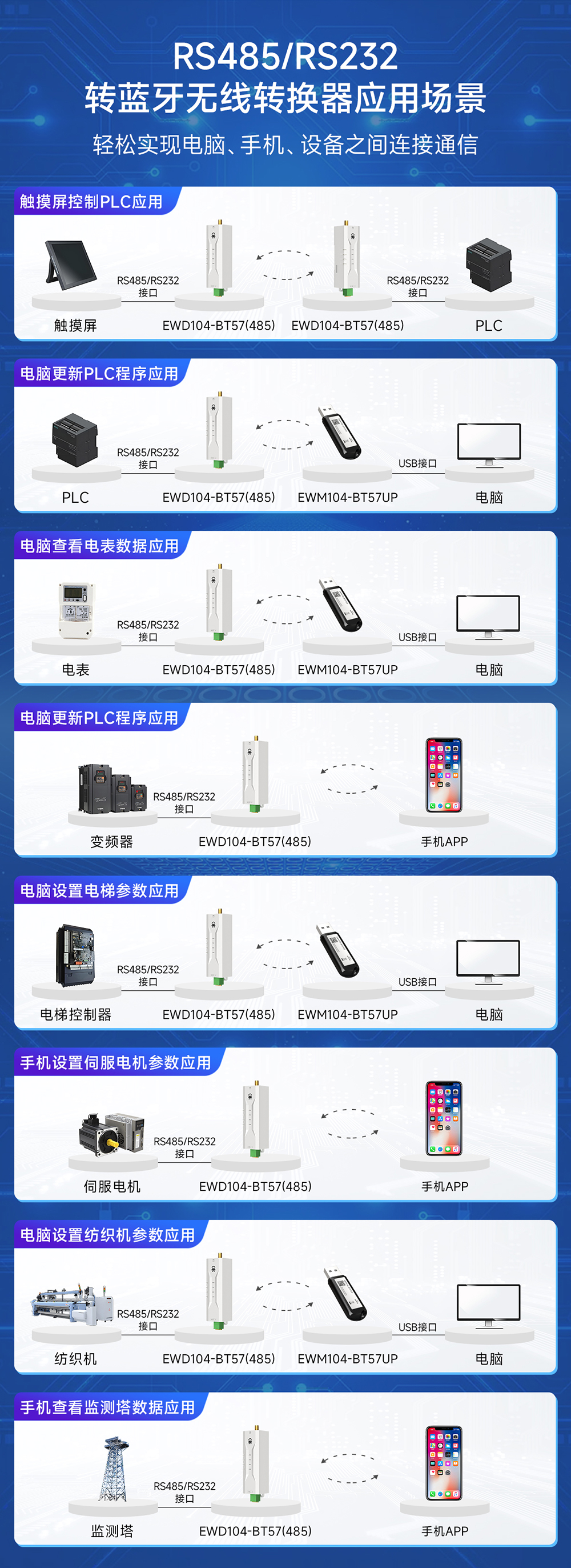

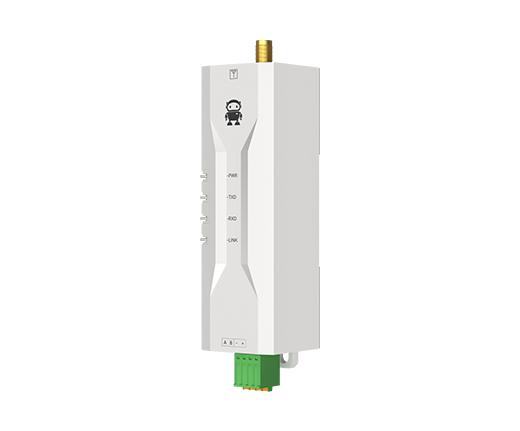

產品簡介：EWD104-BT57(xxx)無線模塊是基于BLE5.2藍牙協議的RS485/RS232轉BLE藍牙轉換器模塊，體積小、功耗低，工作在2.4GHz頻段，該藍牙轉換器模塊使用通用的AT指令，操作簡單快捷。藍牙轉換器模塊可廣泛應用于家庭自動化、家庭安防、個人保健、智能家電、配飾與遙控器、汽車、照明、工業互聯網、智能數據采集、智能控制等領域。

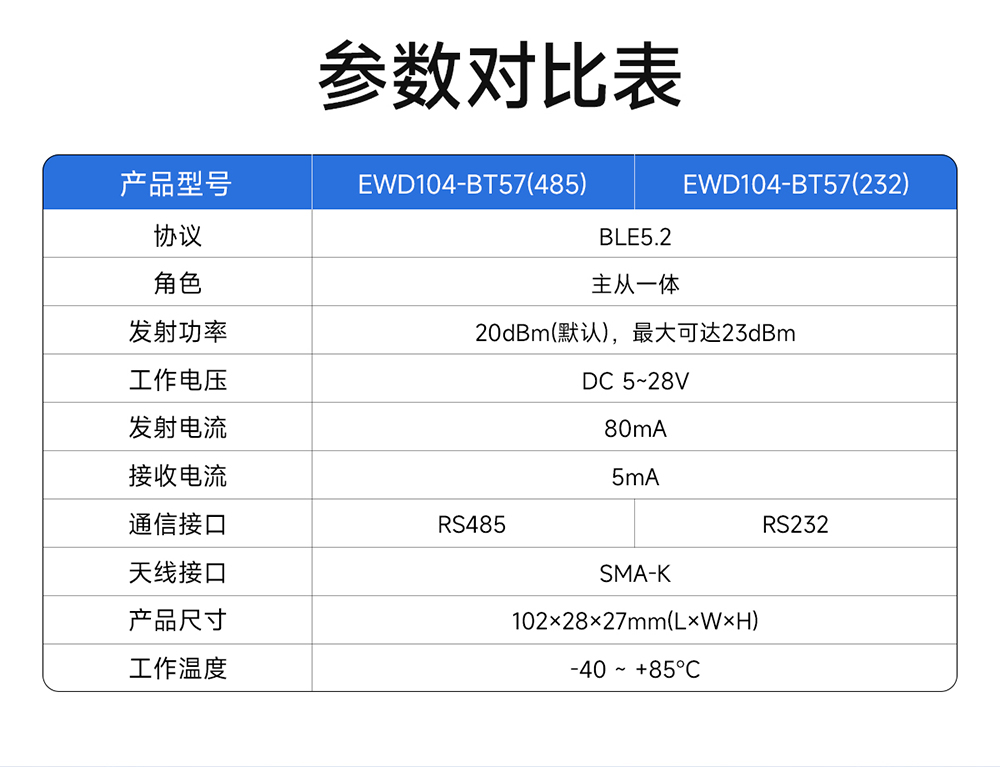

| 主要參數 | 性能 | 備注 | |
| 最小值 | 最大值 | ||
| 電源電壓（V） | 0 | 28 | 超過 28V 可能永久燒毀模塊 |
| 阻塞功率（dBm） | - | 10 | 近距離使用燒毀概率較小 |
| 工作溫度（℃） | -40 | 85 | 工業級 |
| 主要參數 | 性能 | 備注 | |||
| 最小值 | 典型值 | 最大值 | |||
| 工作電壓（V） | 5 | 12 | 28 | ≥5.0V 可保證輸出功率，超過 28V 可能永久燒毀模塊 | |
| 工作頻段（MHz） | 2400 | - | 2480 | 支持 ISM 頻段 | |
| 發射功率 | -20 | 20 | 23 | - | |
| 功耗 | 發射電流（mA） | - | 80 | - | 峰值瞬態電流@23dBm |
| 接收電流（mA） | - | 5 | - | - | |
| 接收靈敏度（dBm） | - | -95dBm | - | ||
| 工作溫度（℃） | -40 | - | +85 | 工業級設計 | |
| 主要參數 | 描述 | 備注 |
| 參考距離 | 560m | 晴朗空曠環境，高度 2 米，23dBm,空速 1Mbps |
| 藍牙協議 | BLE 5.2 | - |
| EWD104-BT57(485)通信接口 | RS485 | - |
| EWD104-BT57(232)通信接口 | RS232 | - |

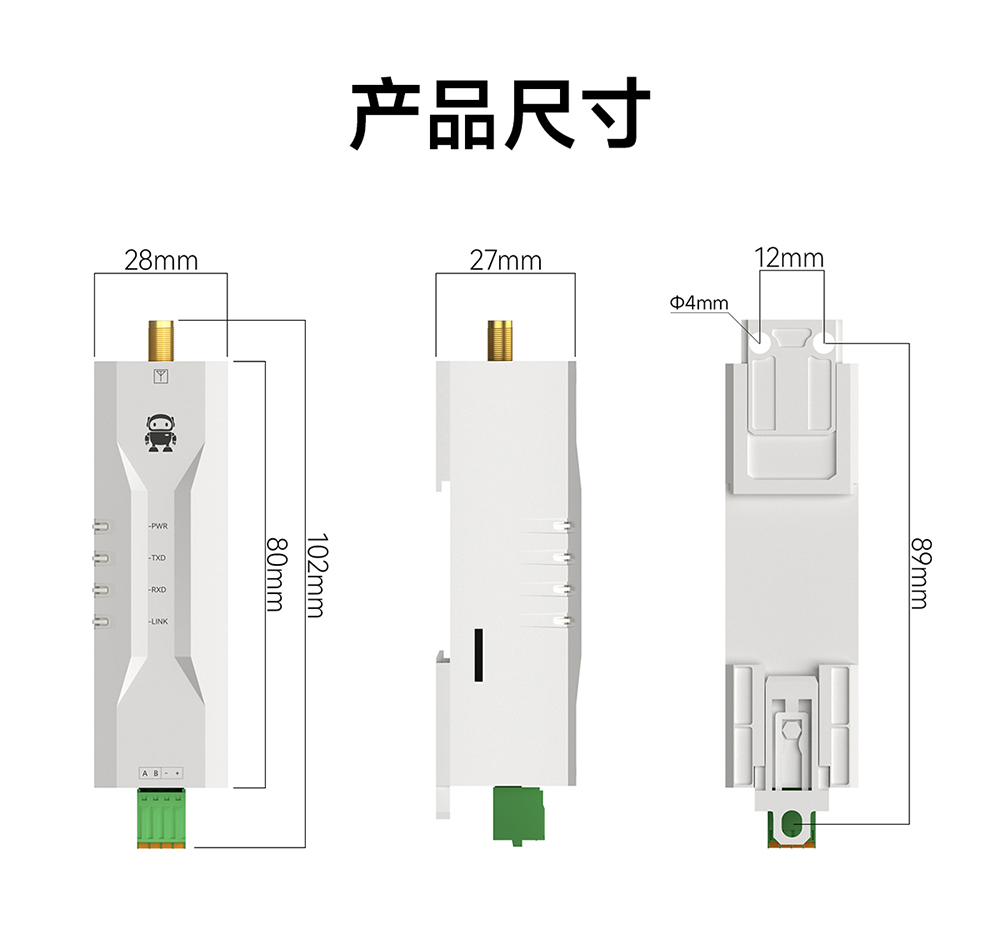

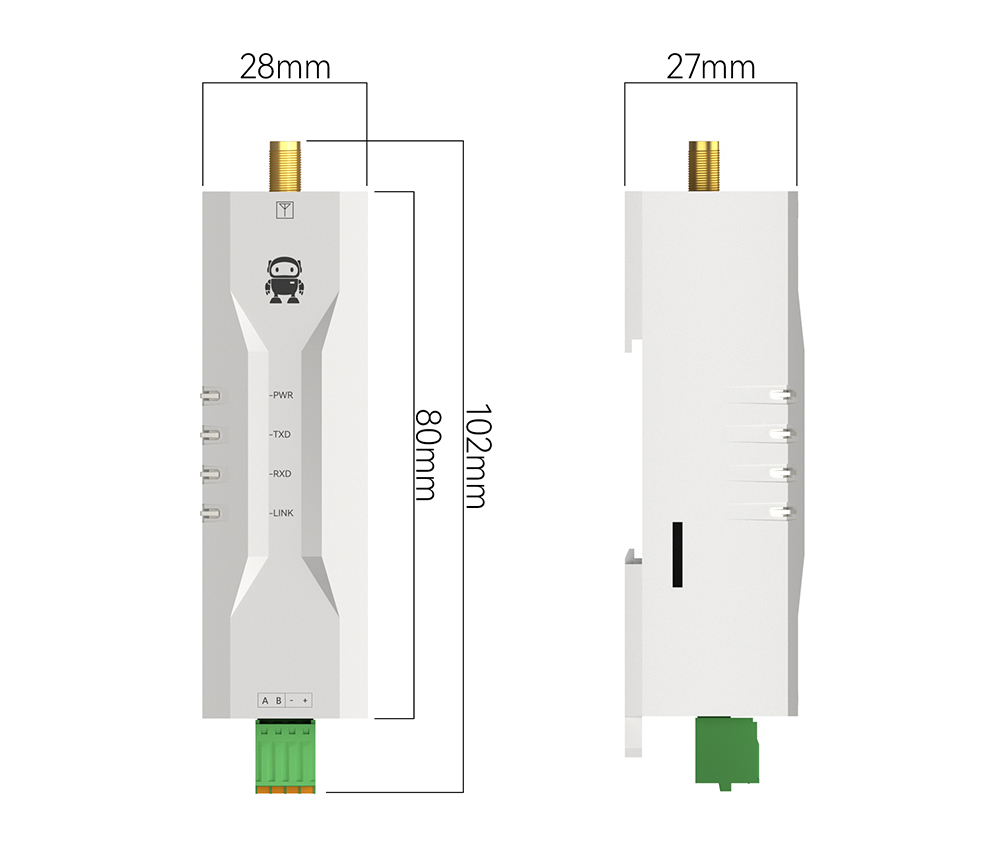

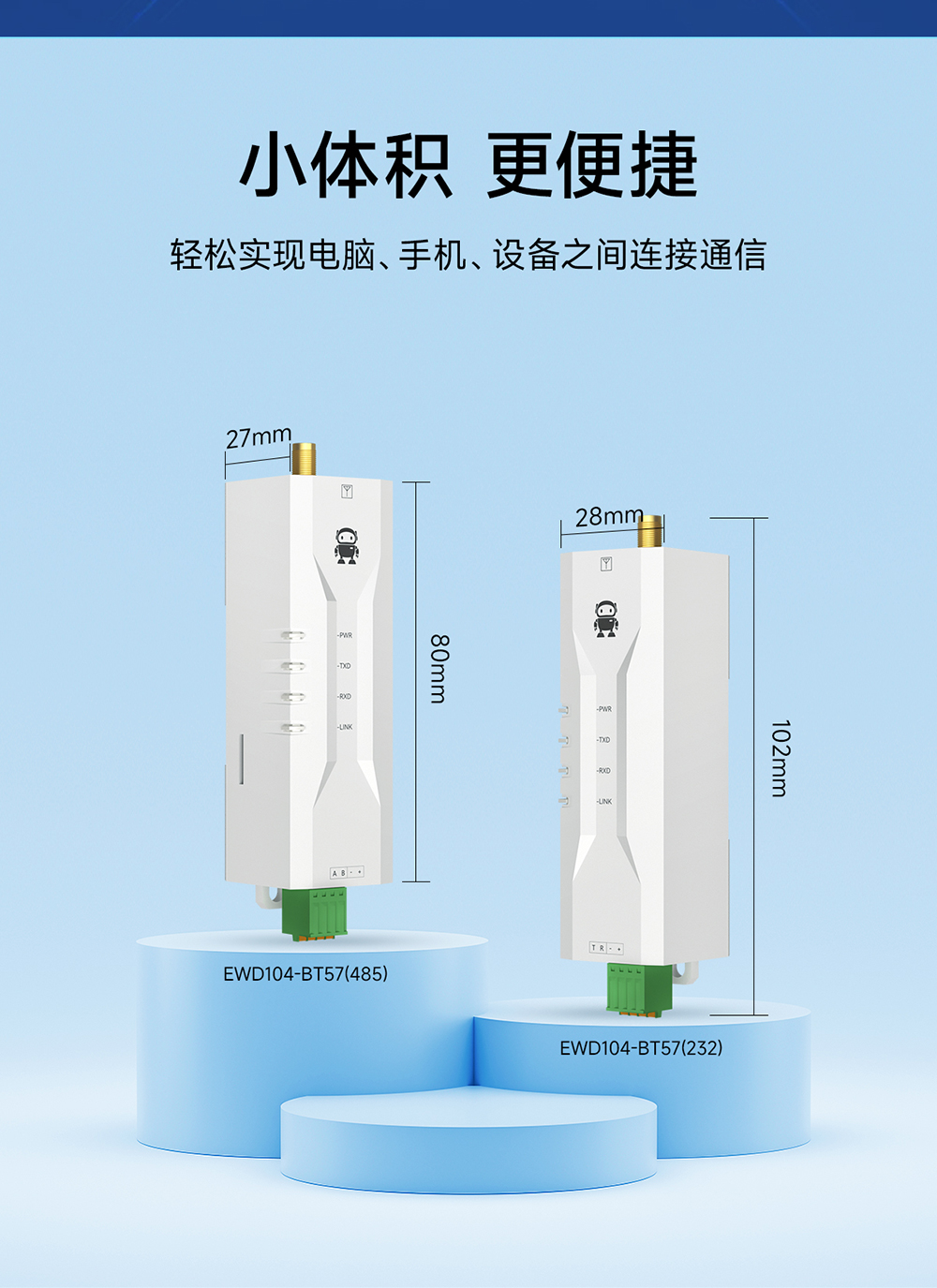

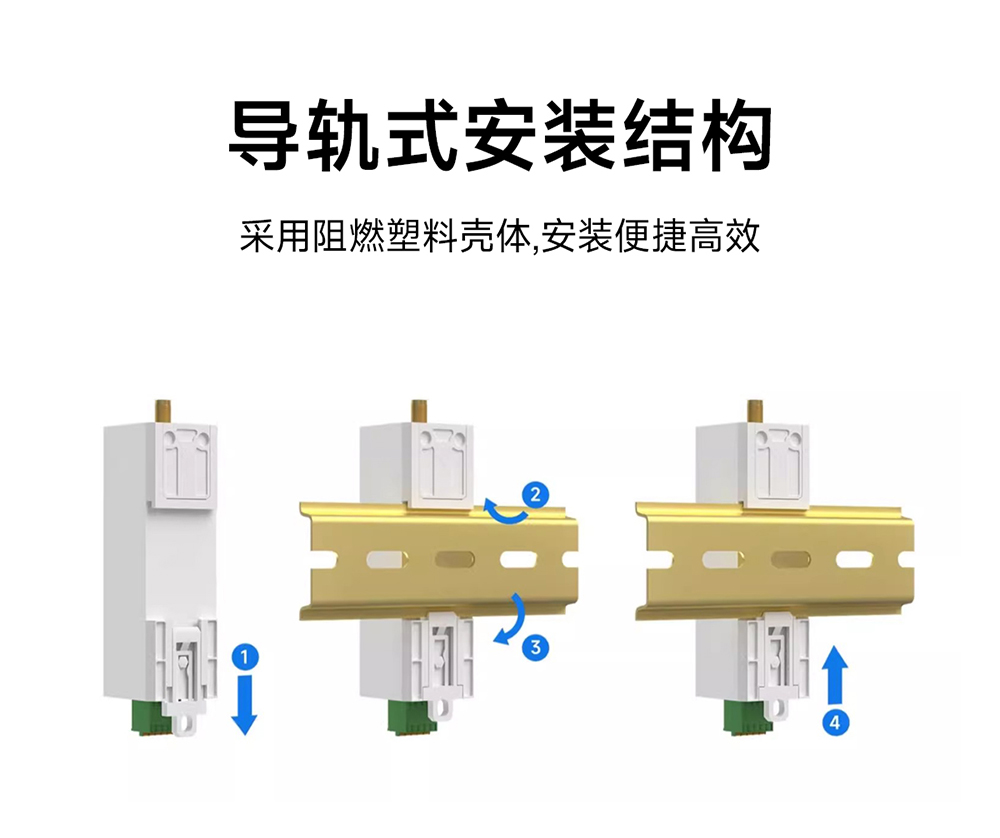

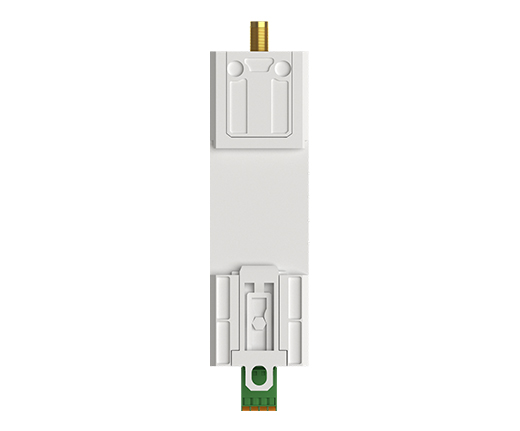

| 外形尺寸 | 102*28*27mm | ±0.2mm |
| 射頻接口 | SMA-K | 等效阻抗約 50Ω |
| 硬件接口 | 4P 接線端子 | 4Pin 3.81mm 間距 |
| 產品重量 | 31g | ±2g |

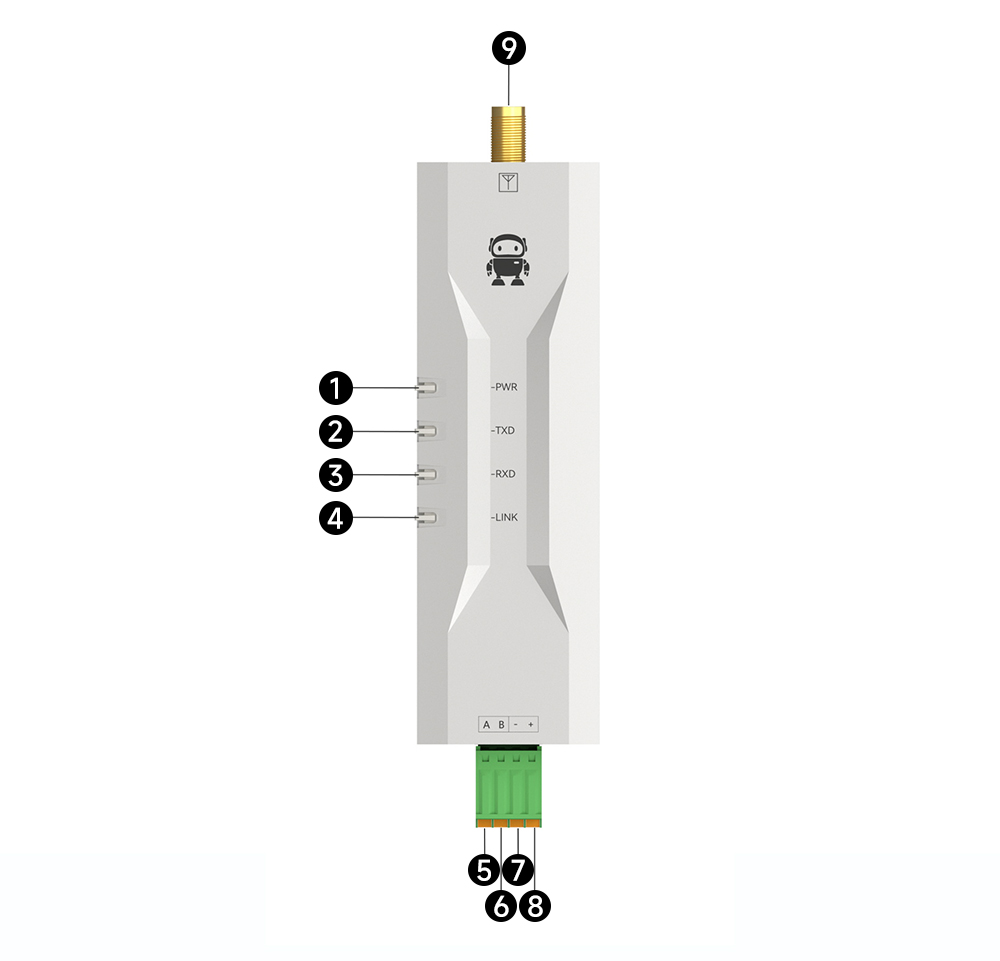

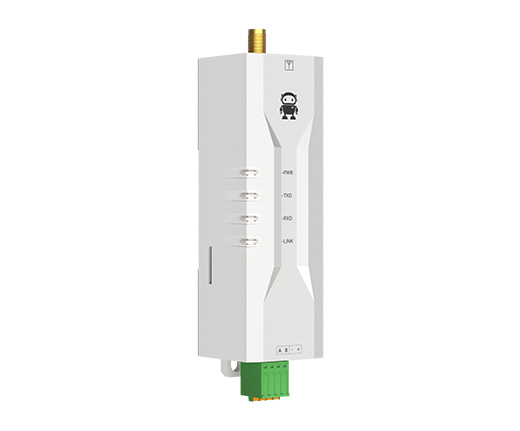

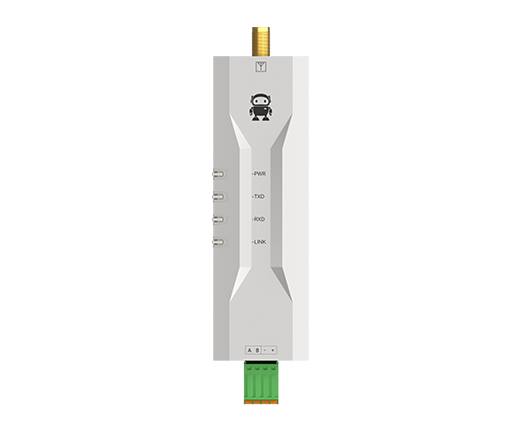

| 序號 | 名稱 | 功能 | 備注 |
| 1 | PWR | 電源指示燈 | 紅色，通電后常亮 |
| 2 | TXD | 發送指示燈 | 藍色，數據發送指示燈 |
| 3 | RXD | 接收指示燈 | 綠色，數據接收指示燈 |
| 4 | LINK | 連接狀態指示燈 | 紅色，連接狀態指示燈，連接后常亮 |
| 5 | A | RS485_A | RS485 信號 A |
| 6 | B | RS485_B | RS485 信號 B |
| 7 | - | GND | 電源負極 |
| 8 | + | VCC | 電源正極，支持 DC 5~28V 供電 |
| 9 | ANT | 射頻接口 | SMA-K，外螺紋內孔。 |
