芯片方案：-
工作頻率：2400~2483.5MHz
調制方式：GFSK
通信距離：300m
產品尺寸：16*13mm
產品重量：0.8±0.1g

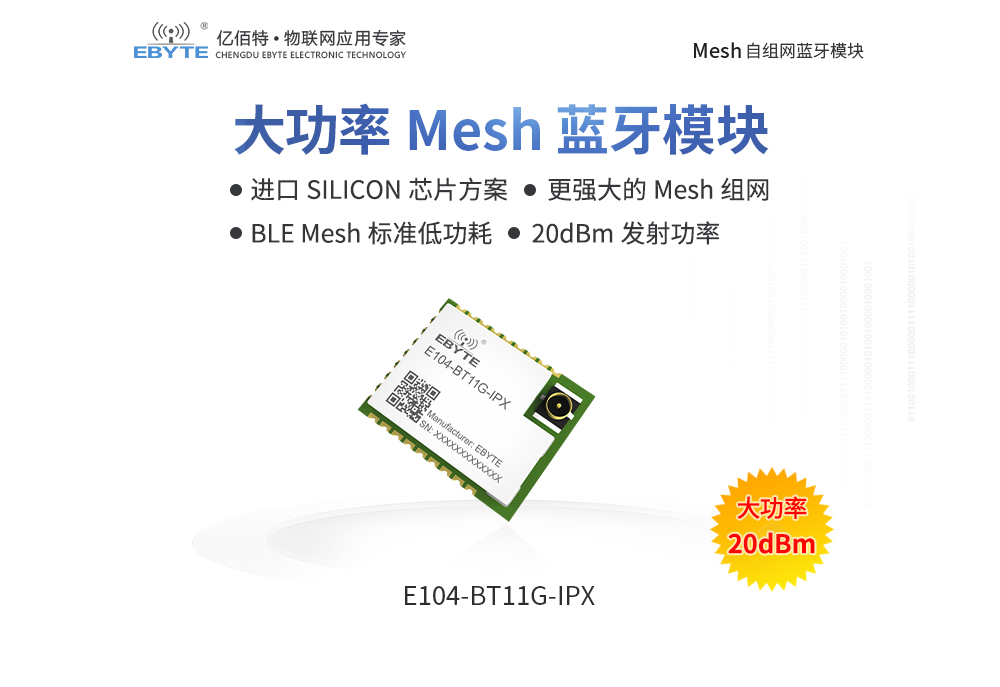

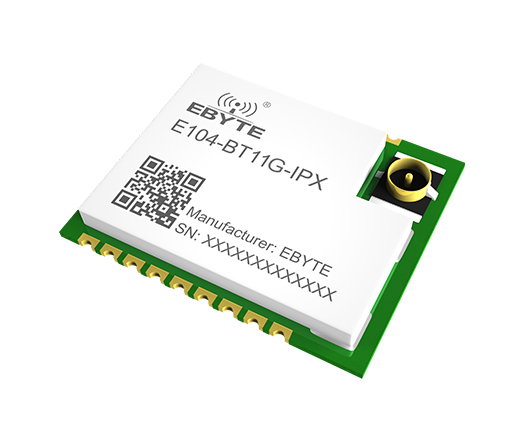

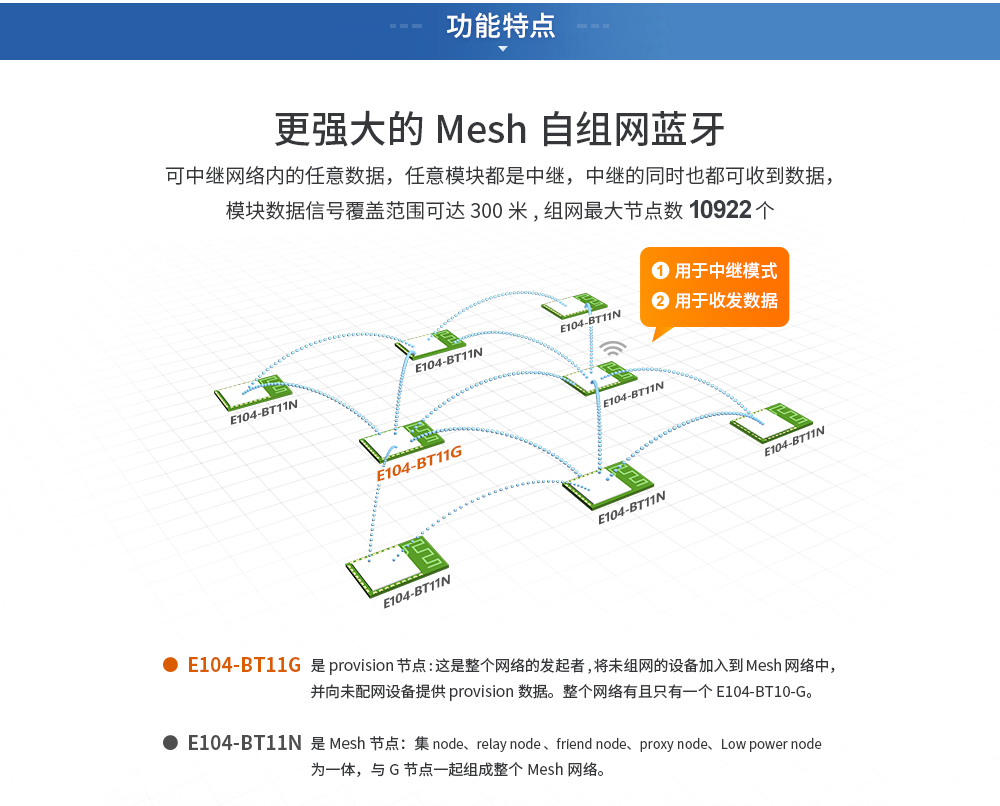

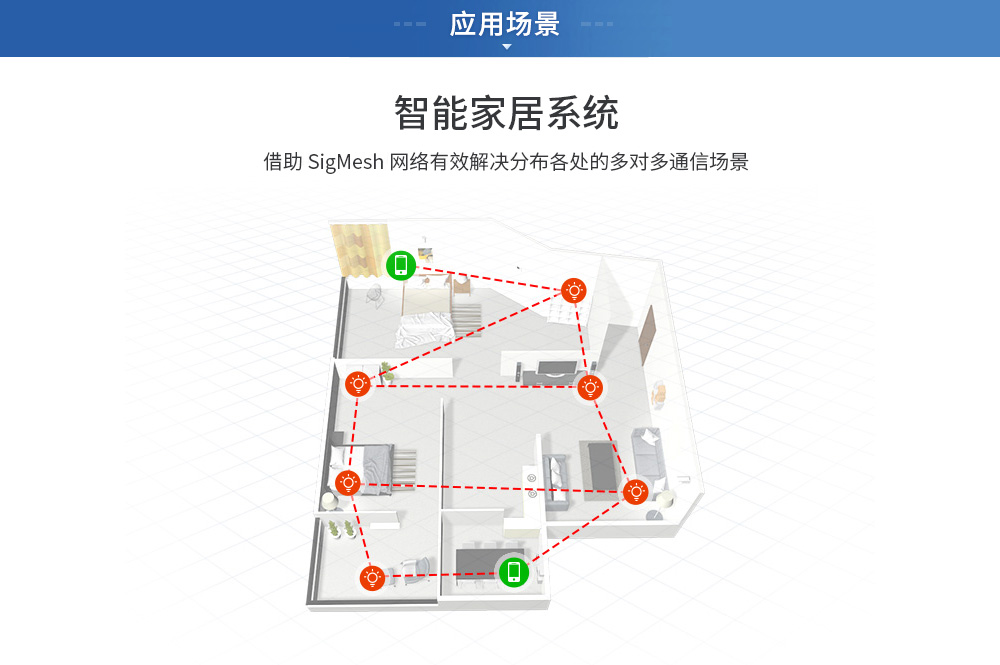

產品簡介：E104-BT11G-IPX藍牙m(xù)esh自組網模塊支持sig mesh V1.0標準，單網絡理論最大可容納10922個節點設備。設備入網后自動記憶網絡信息。手機APP可任意節點代理入網，實現mesh網絡遠程控制。

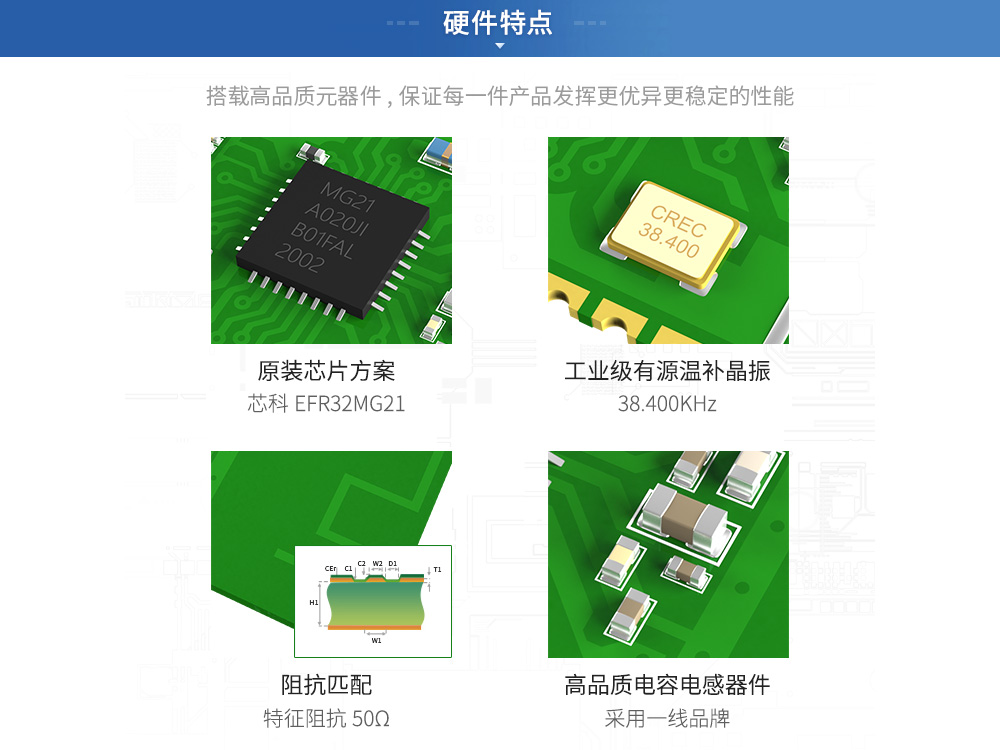

| 射頻參數 | 參數值 | 備注 |
| 工作頻段 | 2400~2483.5 MHz | 支持ISM 頻段 |
| 發射功率 | 20dBm | - |
| 接收靈敏度 | -92 dBm | 空中速率為1Mbps |
| 實測距離 | 200m（PCB 天線） 300m（IPX 天線） | 晴朗空曠，天線高度 2.5 米，空中速率 1Mbps |
| 硬件參數 | 參數值 | 備注 |

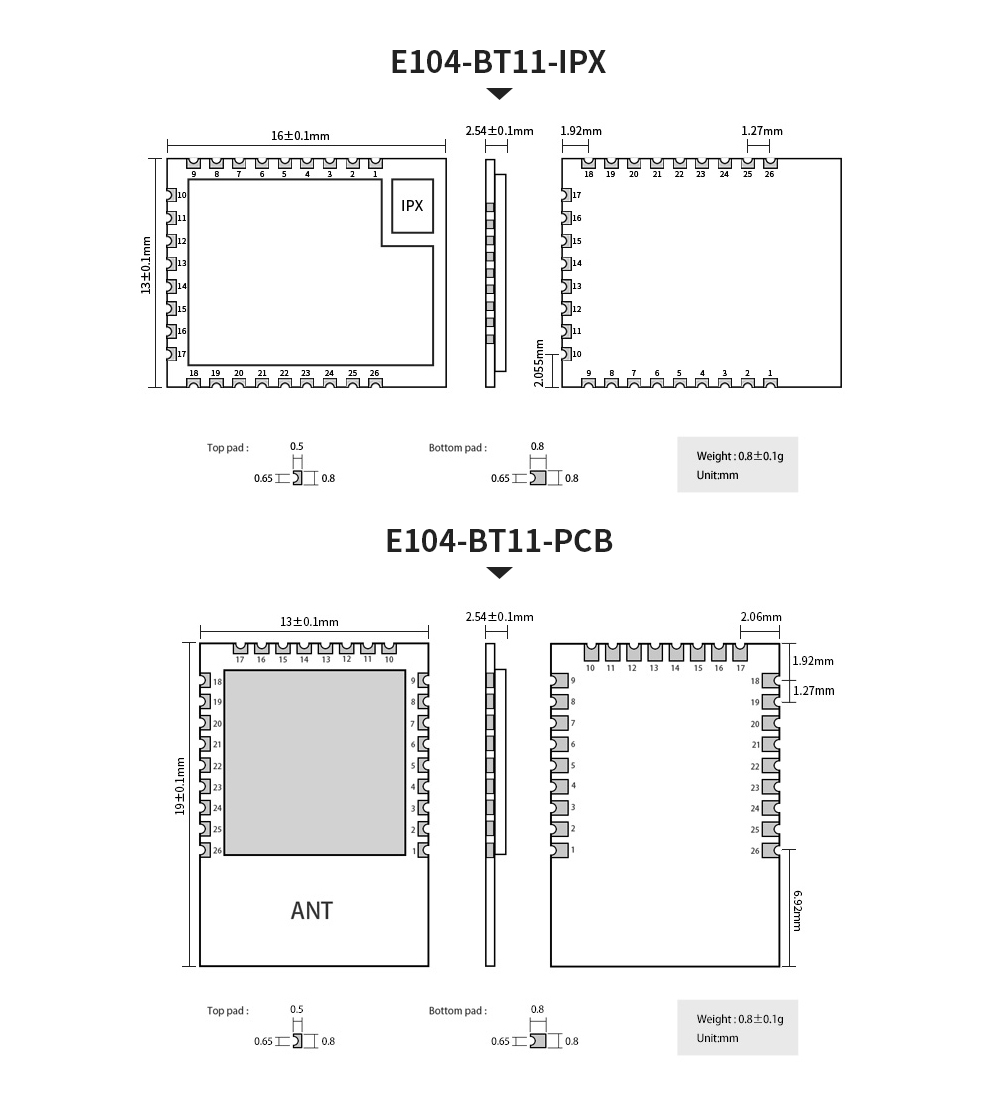

| 尺寸大小 | 19*13mm（PCB 版本） 16*13mm（IPX 版本） | - |
| 射頻接口 | PCB/IPX | 等效阻抗約50Ω |
| 通信接口 | UART | 4800～230400bps |
| 封裝方式 | 貼片式 | - |
| 接口方式 | 1.27mm | - |
| 產品重量 | 0.8±0.1g（PCB 版本） 0.8±0.1g（IPX 版本） | - |
| 電氣參數 | 最小值 | 典型值 | 最大值 | 單位 | 條件 |
| 工作電壓 | 1.8 | 3.3 | 3.8 | V | - |
| 通信電平 | - | 3.3 | - | V | 使用 5V TTL 有風險燒毀 |
| 發射電流 | - | 178 | - | mA | 20dBm |
| 接收電流 | - | 10.8 | - | mA | - |
| 休眠電流 | - | 1 | - | uA | - |
| 通信速率 | - | 1 | - | M | GFSK（bps） |
| 工作溫度 | -40 | - | +85 | ℃ | 工業級 |
| 序號 | 引腳 | 引腳方向 |
| 1 | GND | 地線，連接到電源參考地 |
| 2 | PWN | 暫未使用 |
| 3 | PWN | 暫未使用 |
| 4 | PA00 | 暫未使用 |
| 5 | PA03 | 暫未使用 |
| 6 | N.C | - |
| 7 | N.C | - |
| 8 | PA04 | 暫未使用 |
| 9 | PA05 | 暫未使用 |
| 10 | SWD | - |
| 11 | SWC | - |
| 12 | N.C | - |
| 13 | NetLink | 組網指示燈，組網成功后引腳輸出高電平 |
| 14 | PD04 | 暫未使用 |
| 15 | PWM | 暫未使用 |
| 16 | PD03 | 暫未使用 |
| 17 | TXD | UART 的發射引腳，對應用戶串口接收 |
| 18 | RXD | UART 的接收引腳，對應用戶串口發送 |
| 19 | VCC | 供電電源，范圍 1.9～3.6V（建議外部增加陶瓷濾波電容） |
| 20 | GND | 地線，連接到電源參考地 |
| 21 | PC02 | 暫未使用 |
| 22 | PC03 | 低功耗角色選擇引腳（內部上拉）： 低功耗角色：上拉或懸空； 其他角色：直接到地。 |
| 23 | PC04 | 恢復出廠設置。除硬件信息外（UART 配置），全部恢復出廠設置。 |
| 24 | Wakeup | 低功耗模式下喚醒引腳 低電平有效。 |
| 25 | RST | 芯片復位觸發輸入腳，低電平有效 |
| 26 | GND | 地線，連接到電源參考地 |
