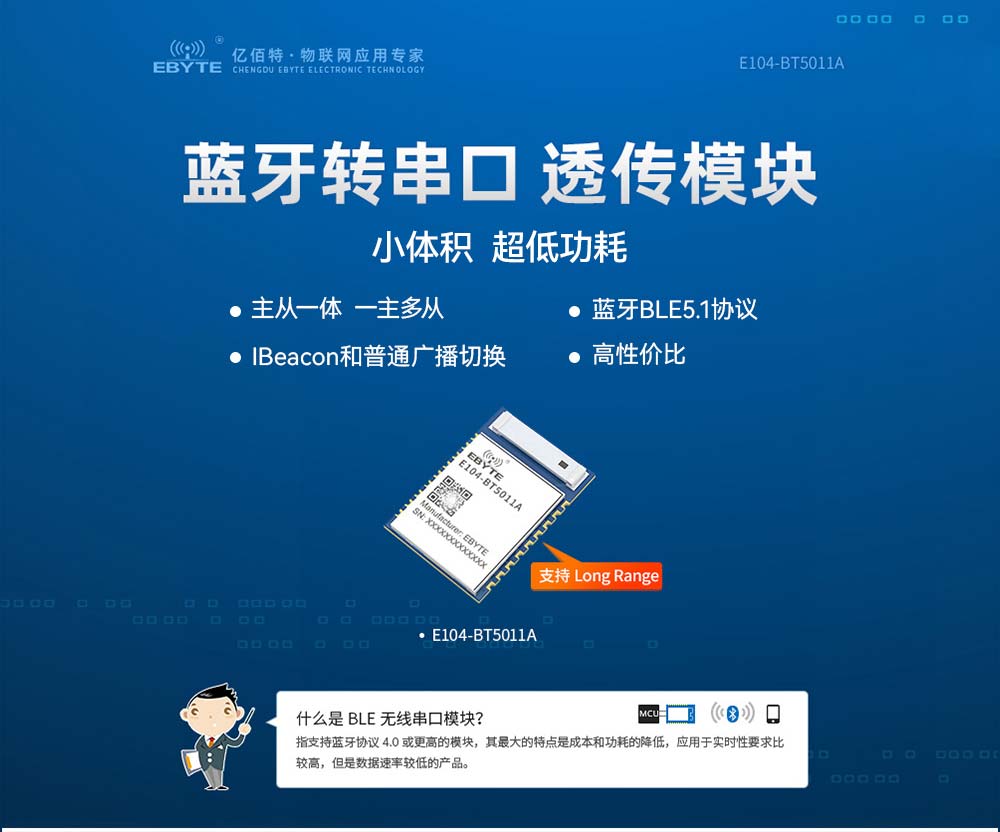

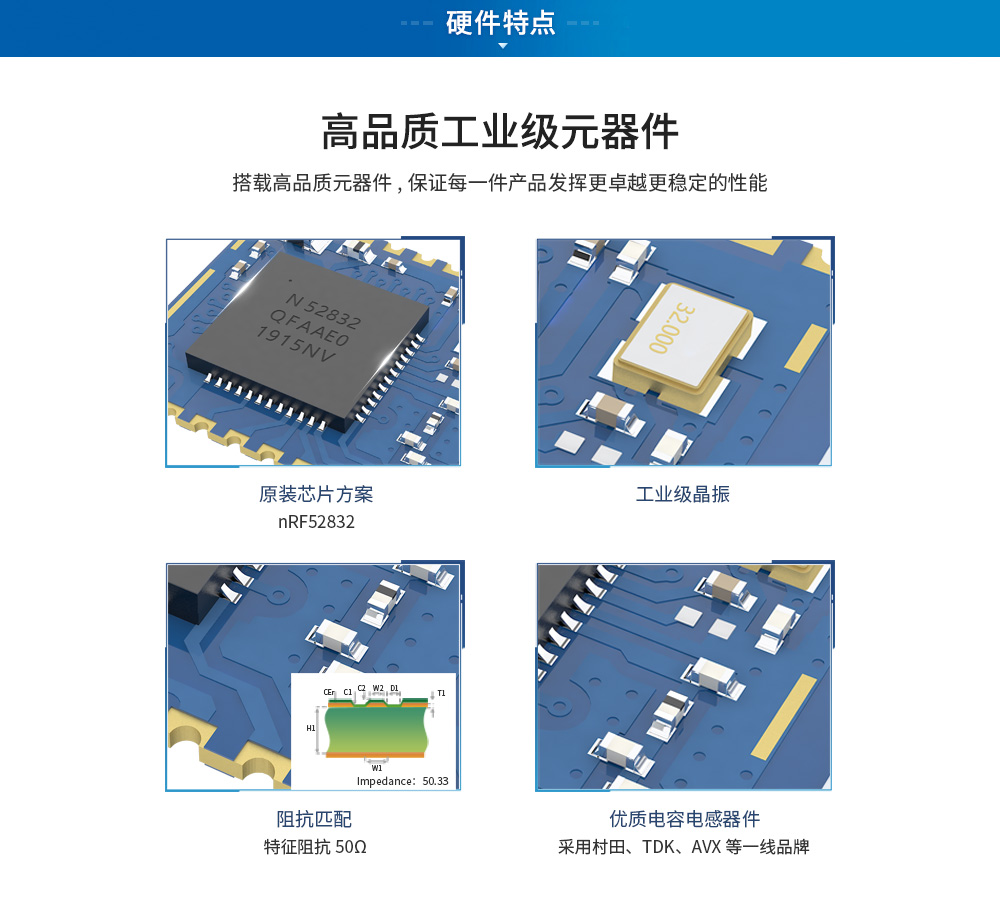

| 射頻參數 | 參數值 | 備注 |
| 工作頻段 | 2402~2480 MHz | 支持ISM 頻段 |
| 最大發射功率 | 4 dBm | - |
| 接收靈敏度 | -96 dBm | Bluetooth?lowenergymode |
| 實測距離 | 70米 | 晴朗空曠環境，高度 2.0 米; @4dBm;空速：1Mbps |
| 硬件參數 | 參數值 | 備注 |

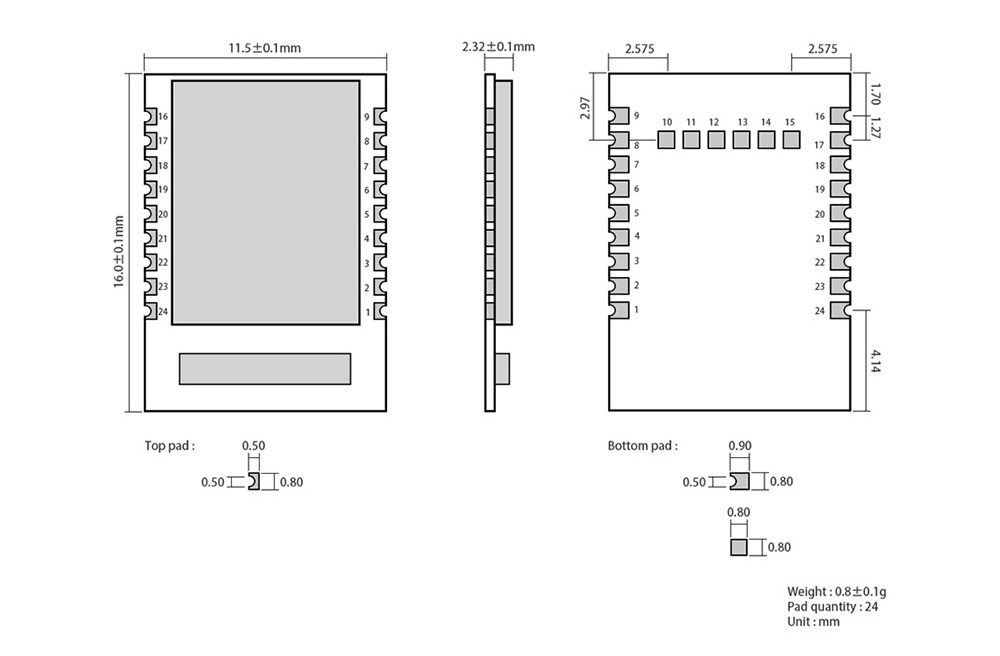

| 尺寸大小 | 11.5 * 16 mm | - |

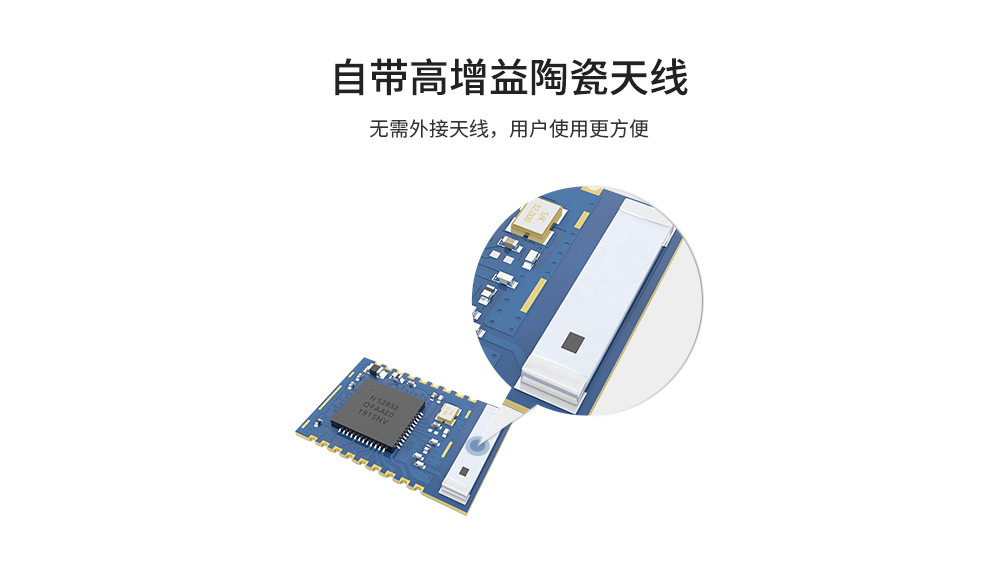

| 天線形式 | 陶瓷天線 | 等效阻抗約50Ω |
| 通信接口 | UART串口 | - |
| 封裝方式 | 貼片 | - |
| 電氣參數 | 最小值 | 典型值 | 最大值 | 單位 | 條件 |
| 電源電壓 | 1.7 | 3.3 | 3.6 | V | ≥3.3V 可保證輸出功率 |
| 通信電平 | - | 3.3 | - | V | 使用5V TTL 有風險燒毀 |
| 發射電流 | - | 13 | 19 | uA | - |
| 接收電流 | - | 13 | - | mA | - |
| 休眠電流 | - | 8 | - | mA | - |

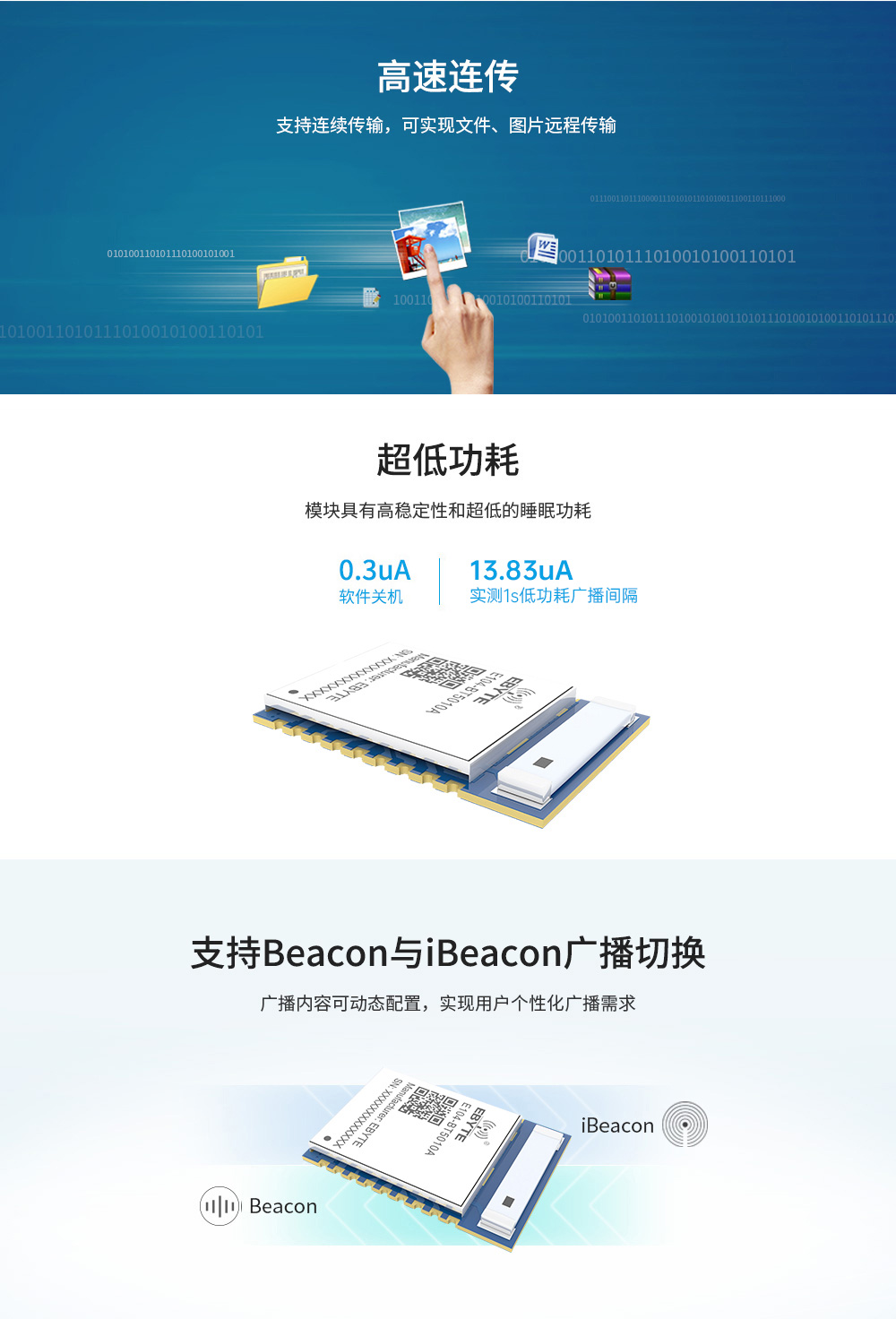

| 休眠廣播電流(默認) | - | 13.83 | - | mA | 廣播間隙為 1s |
| 工作溫度 | -40 | - | +85 | ℃ | 工業級 |
| 儲存溫度 | -40 | - | +125 | ℃ | - |
| 序號 | 定義 | 引腳方向 | 引腳功能 | 說明 |
| 1 | GND | 輸入 | 電源地 | - |
| 2 | P0.25 | - | NC | - |
| 3 | P0.26 | - | NC | - |
| 4 | MOD | 輸入 | 模式選擇 | 低電平：配置模式； 高電平：透傳模式。 |

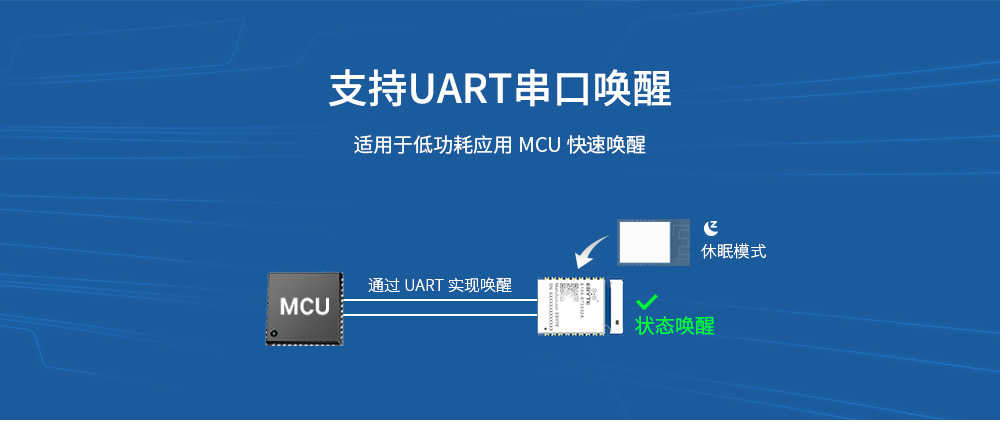

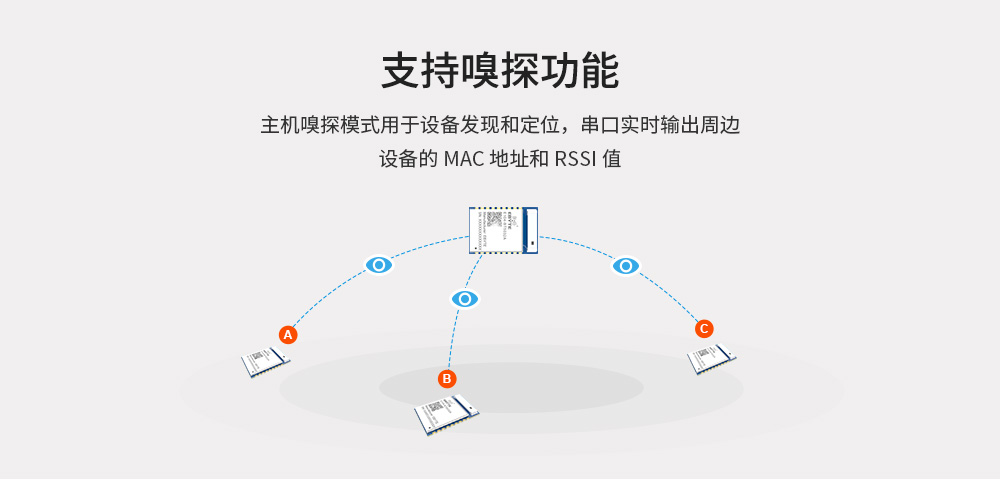

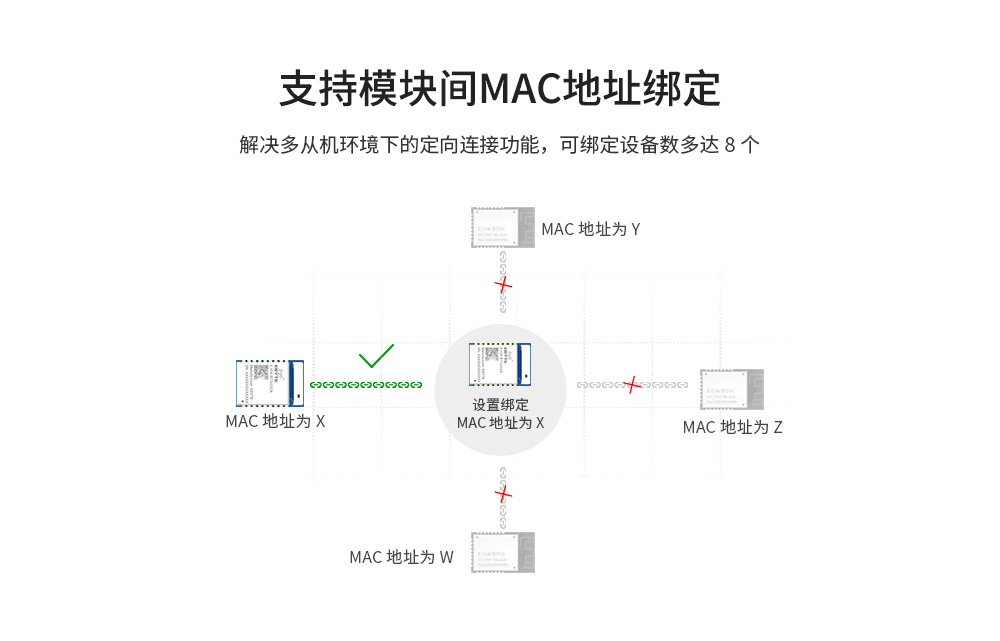

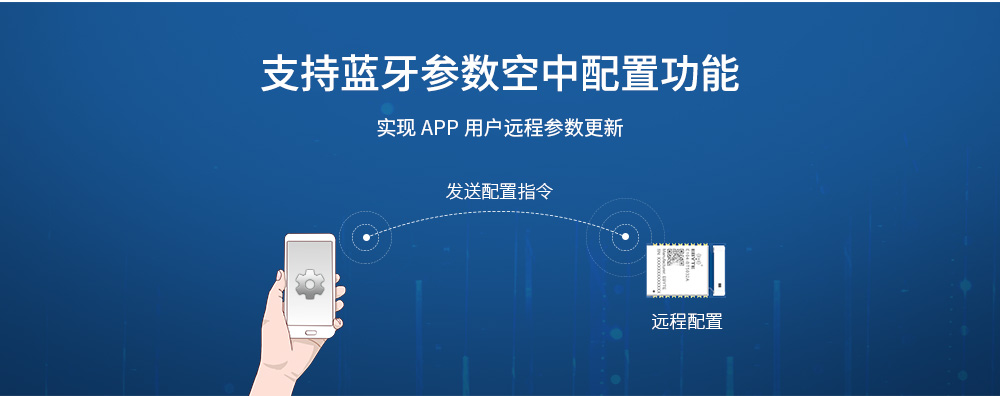

| 5 | WKP | 輸入 | 喚醒引腳 | 喚醒：下降沿； 睡眠：上升沿。 |
| 6 | DISC | 輸入 | 斷開連接引腳 | 內部上拉。下降沿有效 |
| 7 | LINK | 輸出 | 連接狀態 | 藍牙連接：低電平 藍牙無連接：高電平 |
| 8 | DATA | 輸出 | 數據指示 | 數據指示引腳，模塊通過串口輸出數據時，模塊置DATA引腳為低電平，表示正在發送數據。AT指令響應不改變DATA引腳狀態。 |
| 9 | GND | - | 電源地 | - |
| 10 | P0.02 | - | NC | - |
| 11 | P0.03 | - | NC | - |
| 12 | P0.04 | - | NC | - |
| 13 | P0.05 | - | NC | - |
| 14 | P0.06 | - | NC | - |
| 15 | P0.07 | - | NC | - |
| 16 | GND | - | 電源地 | 電源地 |
| 17 | VCC | - | 電源正 | 電源正 |
| 18 | RXD | 輸入 | UART RX 引腳 | - |
| 19 | TXD | 輸出 | UART TX 引腳 | - |
| 20 | RTS | 輸出 | 流控 | 內部上拉 |
| 21 | CTS | 輸入 | 流控 | 內部上拉 |
| 22 | P0.21/RST | - | 電源復位 | 低電平有效 |
| 23 | SWDCLK | - | - | - |
| 24 | SWDIO | - | - | - |
| 產品說明書 |
【用戶手冊】E104-BT5011A datasheet_CN  |
| 開發測試 |
| 【封裝文件】E104-BT5011A |
| 【芯片手冊】nRF52811 |
| 工具軟件 |
| 【通信測試】串口調試助手_XCOM |
| 億佰特簡介 |
| 【企業簡介】 |
| 在線購買 |
| 【天貓旗艦店】：https://detail.tmall.com/ |
| 【京東商城】：https://i-item.jd.com |
| 【官方淘寶店】：https://item.taobao.com |
| 【阿里巴巴】：https://detail.1688.com |
| 批量采購/定制產品 |
| 【銷售專線】：4000-330-990 7x24小時銷售服務熱線 |
| 【聯系郵箱】：support@cdebyte.com |
| 技術咨詢 |
| 【在線提交】：http://www.vc0p1s10a.cn/apple-technology.aspx |
| 【聯系郵箱】：support@cdebyte.com |
| 產品 型號 | 接口類型 | 芯片方案 | 工作頻率 Hz | 發射功率 dBm | 通信距離 km | 通信協議 | 天線形式 | 產品尺寸 mm | 功能特點 | 技術 手冊 | 樣品 購買 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EWM104-BT3040(I2S) | USB | QCC3040 | 2.4G | 9 | 0.22 | BLE 5.2 | 郵票孔 | 13*18 | I2S輸出接口、貼片式封裝、高通藍牙音頻模塊 | ||
| EWM104-BT3040(DAC) | USB | QCC3040 | 2.4G | 9 | 0.22 | BLE 5.2 | 郵票孔 | 13*18 | DAC輸出接口、貼片式封裝、高通藍牙音頻模塊 | ||
| EWM104-BT13SX | UART | - | 2.4G | 10 | 0.07 | BLE 5.0 | 貼片式 | 10*10 | 低功耗、小體積、3代IPEX天線接口、藍牙接近開關模塊 | ||
| EWM104-BT13SP | UART | - | 2.4G | 10 | 0.06 | BLE 5.0 | 貼片式 | 10*10 | 低功耗、小體積、PCB板載天線、藍牙接近開關模塊 | ||
| EWM104-BT5125(SPDIF) | USB | QCC5125 | 2.4G | 9 | 0.12 | BLE 5.1 | 郵票孔 | 13*18 | SPDIF輸出接口、無線藍牙音頻模塊 | ||
| EWM104-BT5125(I2S) | USB | QCC5125 | 2.4G | 9 | 0.12 | BLE 5.1 | 郵票孔 | 13*18 | I2S輸出接口、無線藍牙音頻模塊 | ||
| EWM104-BT5125(DAC) | USB | QCC5125 | 2.4G | 9 | 0.12 | BLE 5.1 | 郵票孔 | 13*18 | DAC輸出接口、無線藍牙音頻模塊 | ||
| EWD104-BT57(485) | RS485 | - | 2.4G | 20 | 0.56 | BLE 5.2 | SMA-K | 102*28*27 | 國產RS232/RS485轉藍牙無線適配器 | ||
| E104-BT52PX | UART | DA14531 | 2.4G | 20 | 0.5 | BLE 5.0 | IPEX 3代 | 16*10 | 低功耗，小體積，高性價比 | ||
| EWM104-BT57UP | USB | - | 2.4G | 23 | 0.22 | BLE 5.2 | PCB | 60*18*8.5 | 藍牙轉USB適配器，低功耗、主從一體、虛擬串口模塊 | ||
| EWM104-BT57U | USB | - | 2.4G | 4.5 | 0.1 | BLE 5.2 | PCB | 18.5*14.5*6.0 | USB轉藍牙適配器，小體積、主從一體、虛擬串口模塊 | ||
| EWM104-BT09SX | UART | TLSR8208BER | 2.4G | 11.5 | 0.2 | BLE 5.0 | 貼片式 | 10*10 | 低功耗小體積，藍牙從機模塊 | ||
| EWM104-BT09SP | UART | TLSR8208BER | 2.4G | 11.5 | 0.12 | BLE 5.0 | 貼片式 | 10*14.5 | 低功耗，藍牙轉串口從機模塊 | ||
| E104-BT5032B | UART | nRF52832 | 2.4G | 20 | 0.5 | BLE 5.0 | 陶瓷天線 | 11.6*20 | 低功耗，透明傳輸，主從一體 | ||
| E104-BT09 | UART | TLSR8208BER | 2.4G | 11.5 | 0.15 | BLE 5.0 | 貼片式 | 13*19 | 低功耗，從機模塊 | ||
| E104-BT08 | UART | - | 2.4G | 8 | 0.06 | BLE 5.1 | 貼片式 | 10*10 | 低功耗，主從一體 | ||
| E104-BT07 | UART | - | 2.4G | 8 | 0.13 | BLE 5.1 | 貼片式 | 21.9*14.6 | 低功耗，主從一體 | ||
| E104-BT53C3 | UART | EFR32BG22 | 2.4G | 6 | 0.17 | BLE 5.2 | PCB | 23*16 | 車規級耐高溫、串口轉BLE藍牙模塊 | ||
| E104-BT55SP | UART | CC2340R5 | 2.4G | 8 | 0.17 | BLE 5.3 | 板載PCB天線 | 10*14.5 | 低功耗，小體積 | ||
| E104-BT52X | UART | DA14531 | 2.4G | 0 | 0.13 | BLE 5.0 | IPEX 3代 | 10*10 | 低功耗，小體積，高性價比 | ||
| E104-BT11N-IPX | UART | EFR32MG21 | 2.4G | 20 | 0.3 | BLE Mesh | IPX | 16*13 | SigMesh自組網 | ||
| E104-BT11G-IPX | UART | EFR32MG21 | 2.4G | 20 | 0.3 | BLE Mesh | IPX | 16*13 | SigMesh自組網 | ||
| E104-BT11N-PCB | UART | EFR32MG21 | 2.4G | 20 | 0.2 | BLE Mesh | PCB | 19*13 | SigMesh自組網 | ||
| E104-BT11G-PCB | UART | EFR32MG21 | 2.4G | 20 | 0.2 | BLE Mesh | PCB | 19*13 | SigMesh自組網 | ||
| E104-BT5032U | USB | nRF52832 | 2.4G | 3 | 0.08 | BLE 4.2/BLE 5.0 | PCB | 59 * 18 | 藍牙SoC方案，USB接口 | ||
| E104-BT53A3 | UART | EFR32BG22C224F512GM32 | 2.4G | 6 | 0.12 | BLE 5.2 | PCB | 13*19 | 低功耗，透明傳輸 | ||
| E104-BT12NSP-TB | USB | - | - | - | - | - | - | 46.5*26 | E104-BT12NSP模塊測試板 | ||
| E104-BT12LSP-TB | USB | - | - | - | - | - | - | 46.5*26 | E104-BT12LSP模塊測試板 | ||
| E104-BT12USP-TB | UART | TLSR8253F512 | 2.4G | 10 | 0.06 | - | PCB | 19*13 | SigMesh自組網 | ||
| E104-BT12LSP | UART | TLSR8253F512 | 2.4G | 10 | 0.06 | - | PCB | 19*13 | SigMesh自組網 | ||
| E104-BT12NSP | UART | TLSR8253F512 | 2.4G | 10 | 0.06 | - | PCB | 19*13 | SigMesh自組網 | ||
| E104-BT5040UA | USB | nRF52840 | 2.4G | 8 | 0.25 | BLE 4.2/BLE 5.0 | PCB | 59 * 18 | 藍牙SoC方案，USB接口 | ||
| E104-BT5005A | UART | nRF52805 | 2.4G | 4 | 0.07 | BLE 5.0 | 陶瓷天線 | 9*9 | 超小體積封裝，透明傳輸 | ||

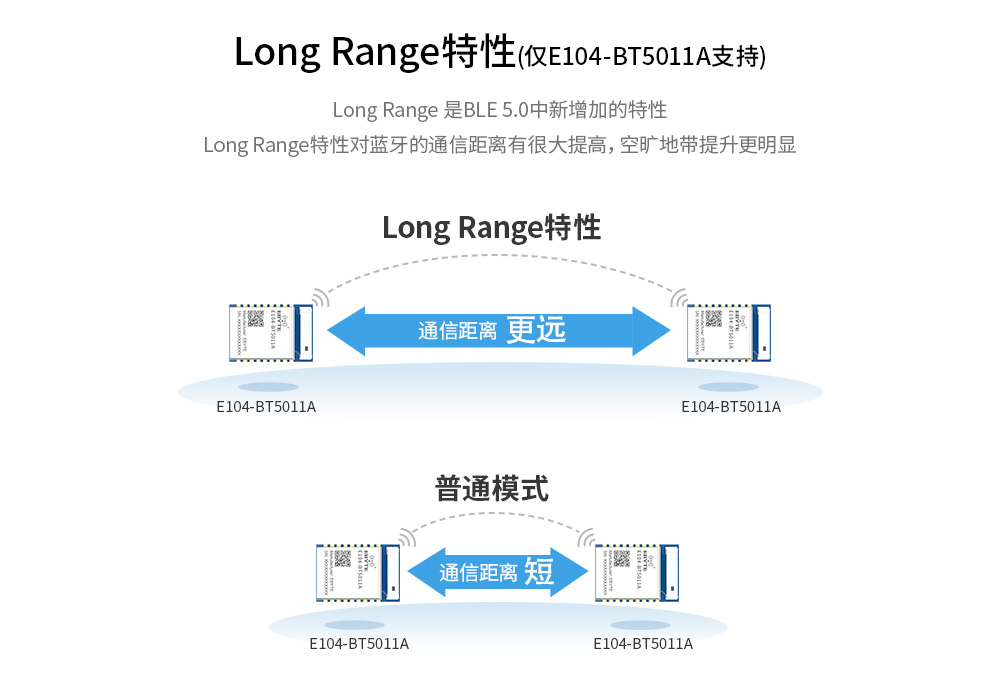

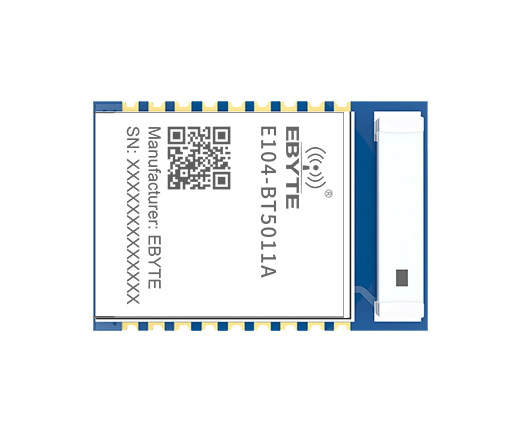

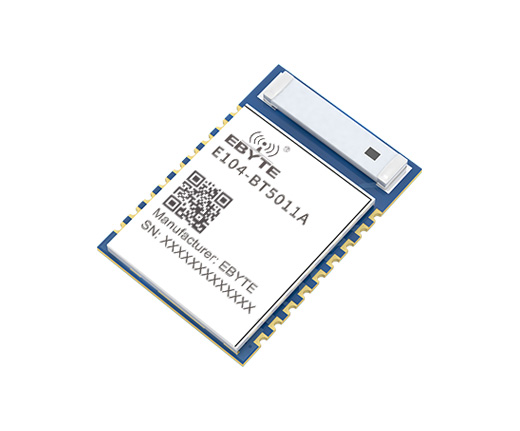

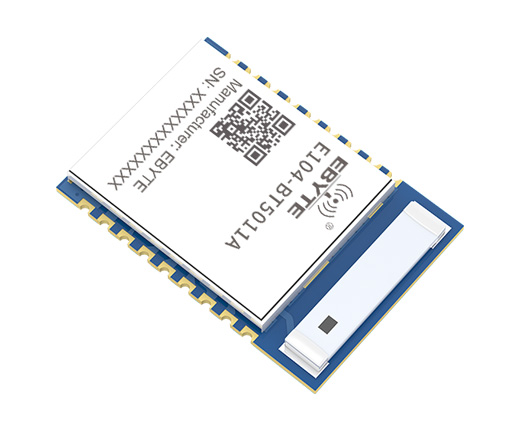

| E104-BT5011A | UART | nRF52811 | 2.4G | 4 | 0.07 | BLE 5.1 | 陶瓷天線 | 11.5*16 | Long Range特性，透明傳輸 | ||
