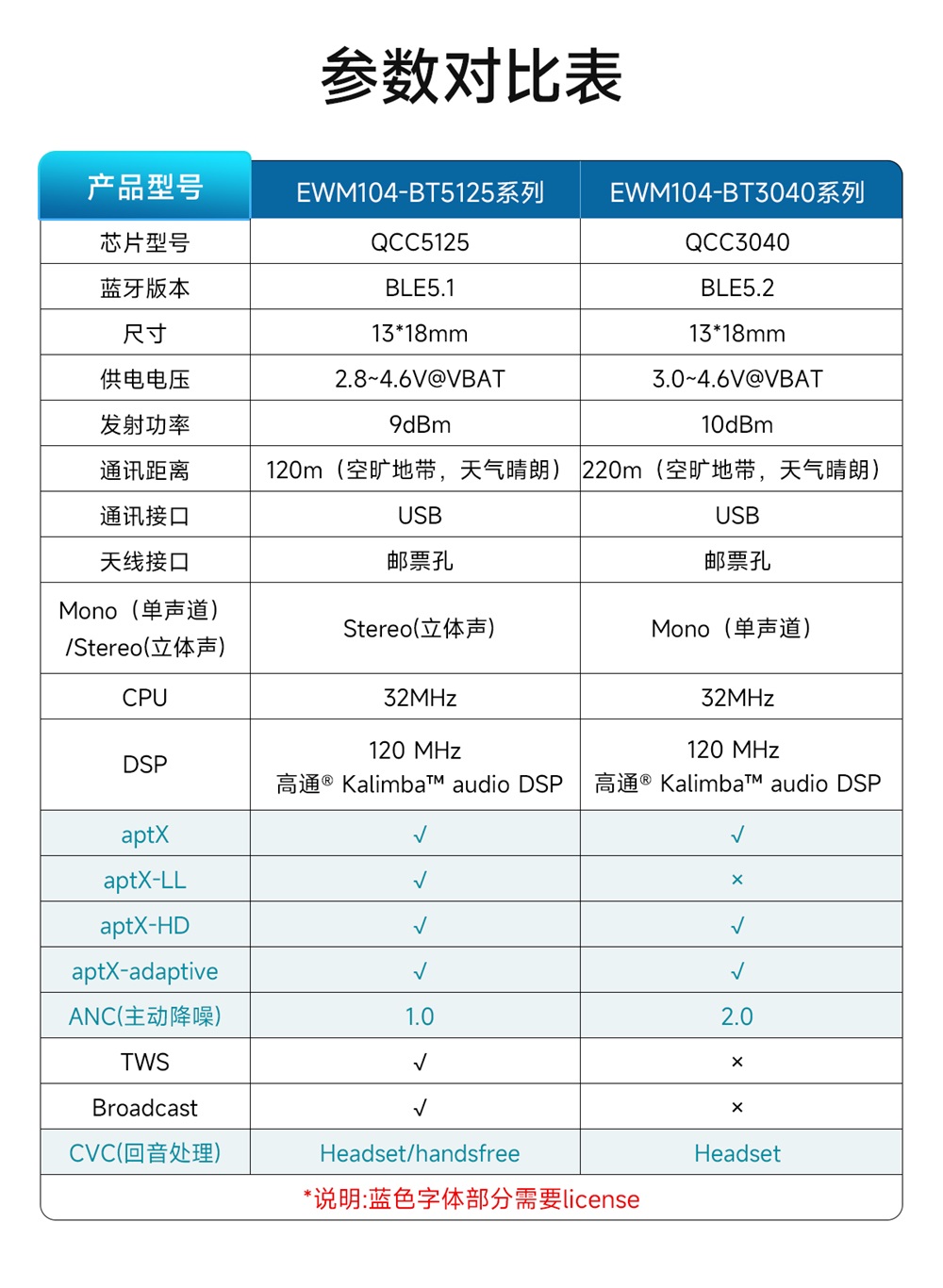

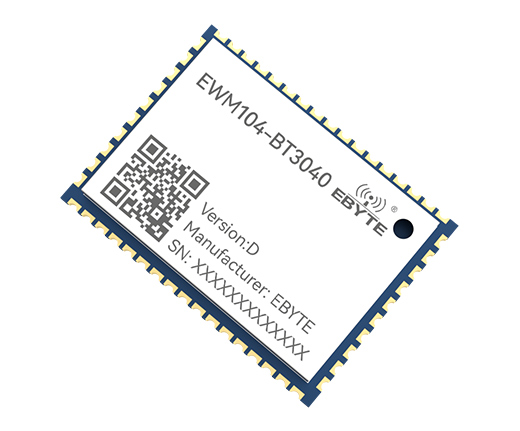

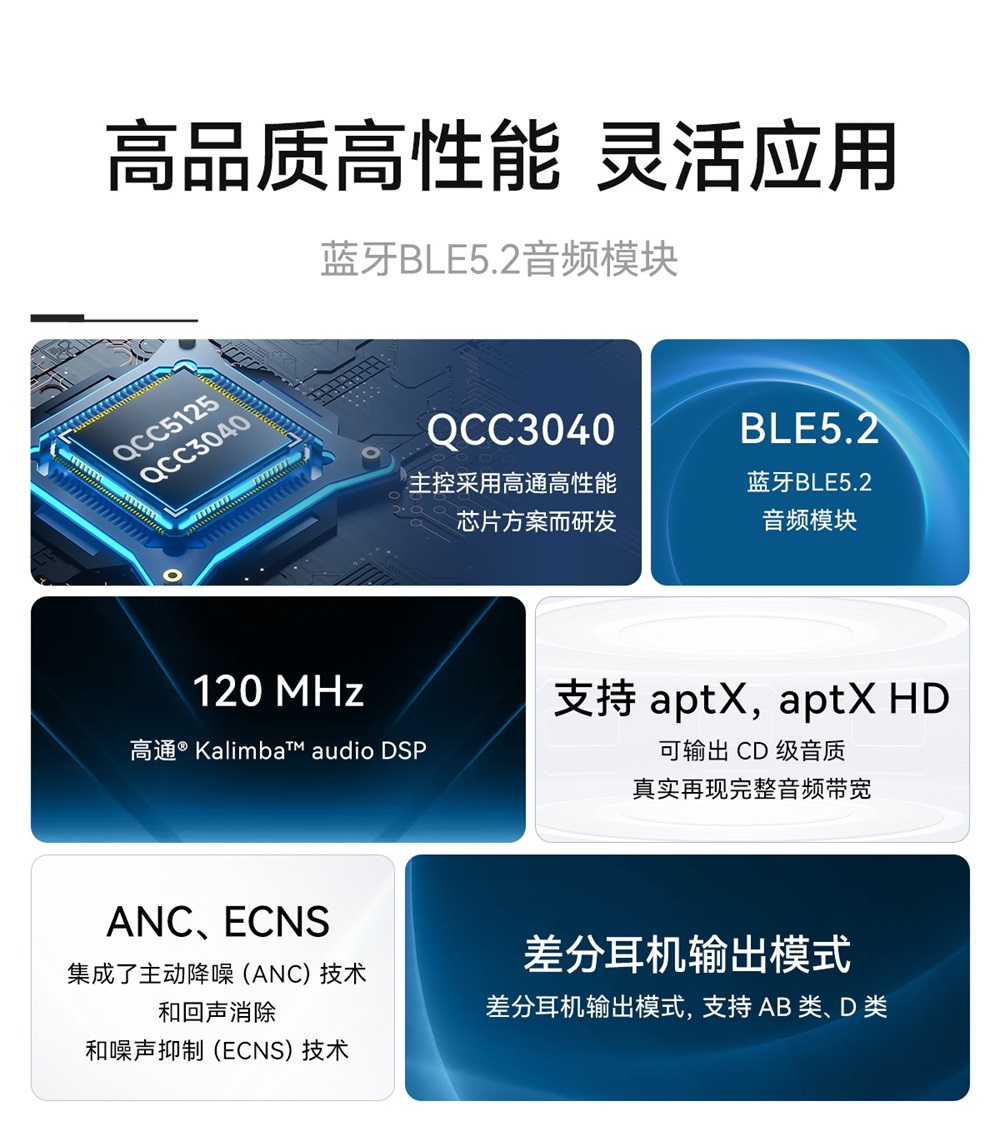

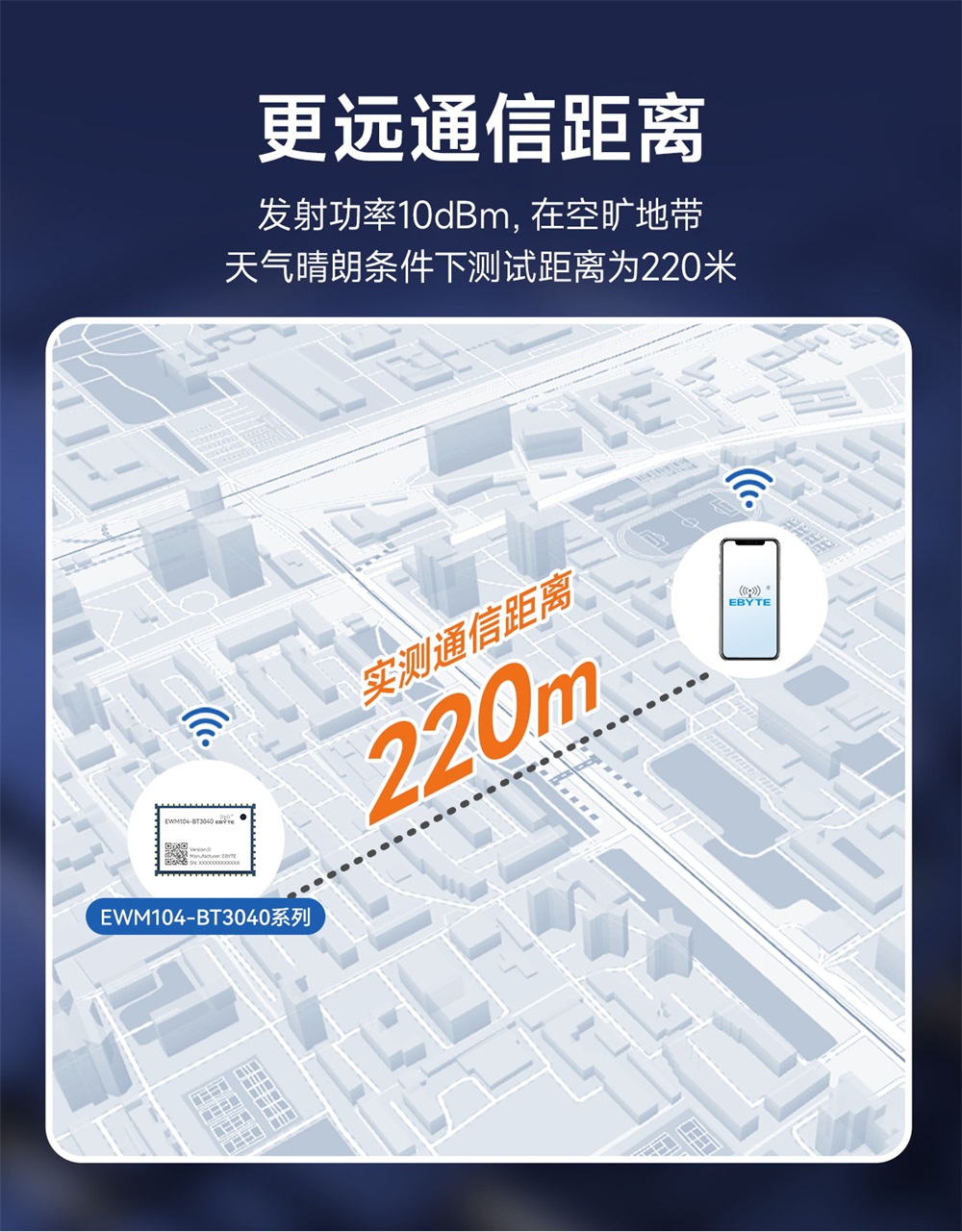

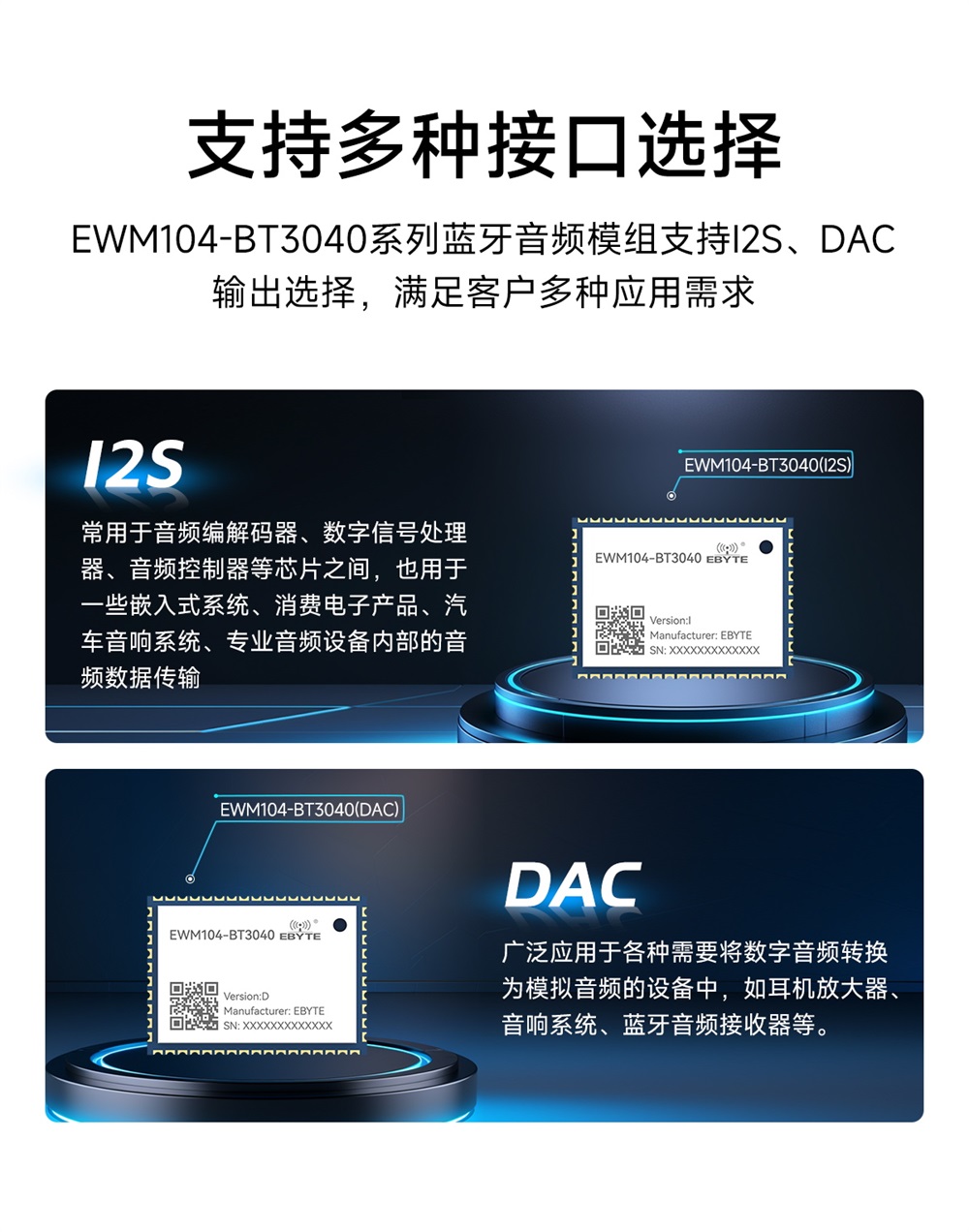

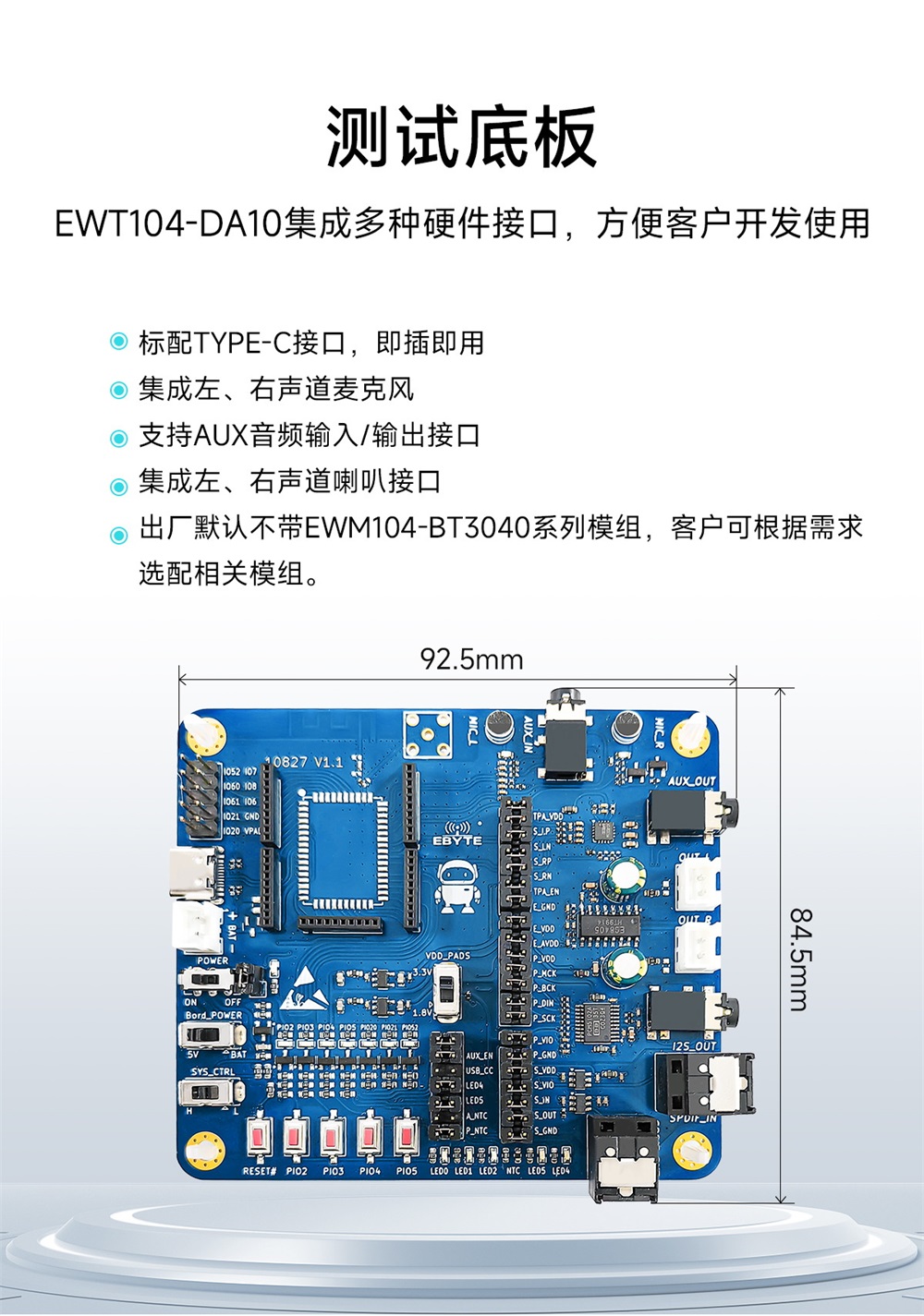

| 主要參數 | 描述 | 備注 |
| 參考距離 | 220m | 空曠地帶，天氣晴朗。 |
| 晶振頻率 | 32MHz | |
| 封裝方式 | 貼片式 | |
| EWM104-BT3040(DAC)輸出接口 | DAC | |
| EWM104-BT3040(I2S)輸出接口 | I2S | |
| 通信接口 | USB | |
| 接口方式 | 郵票孔 | 間距1.00mm |

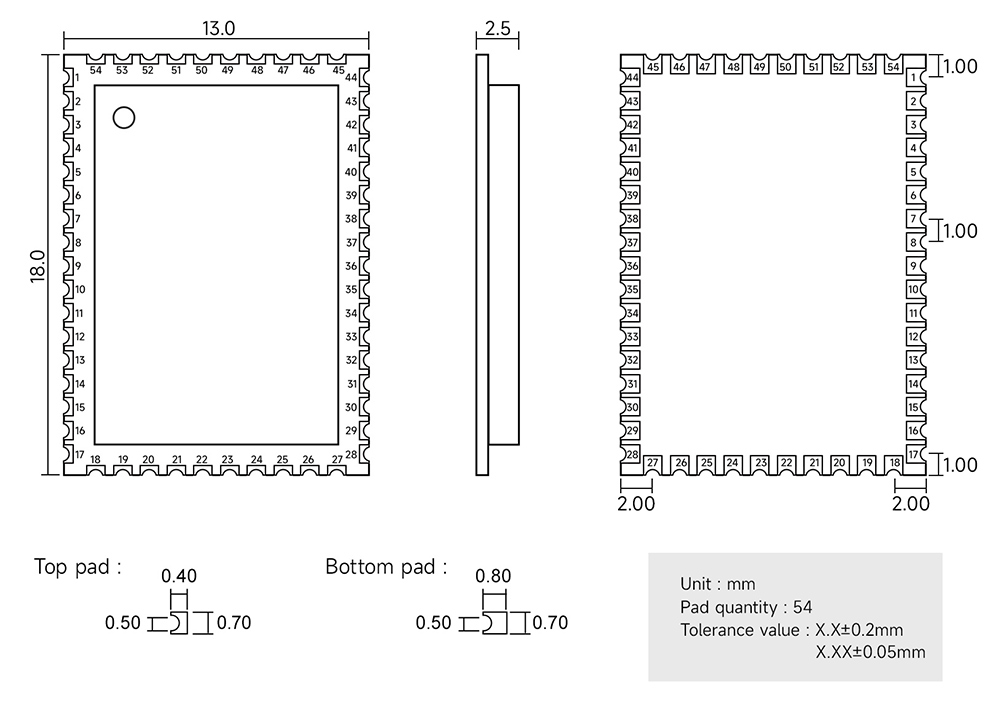

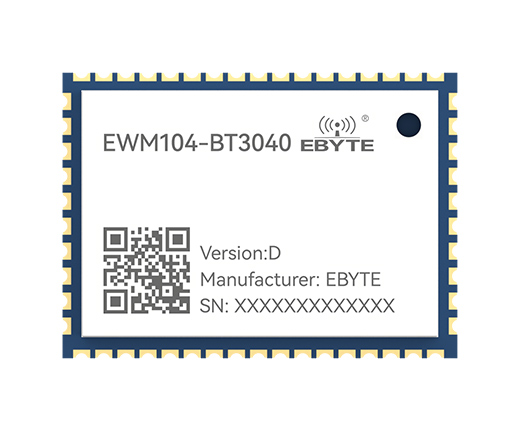

| 外形尺寸 | 13*18mm | ±0.2mm |
| 天線接口 | 郵票孔 | 等效阻抗約50Ω |
| 重量 | 1.0g | ±0.1g |
| 主要參數 | 性能 | 備注 | |||
| 最小值 | 典型值 | 最大值 | |||
| 工作電壓VCHG（V） | 4 | 5 | 6.5 | 超過6.5V存在永久燒毀模塊的風險 | |
| 工作電壓VBAT（V） | 3 | 3.7 | 4.6 | 超過4.6V存在永久燒毀模塊的風險 | |
| 通信電平（V） | 1.8 | 3.3 | 3.6 | 電平由VDD_PADS1和VDD_PADS3電平決定 | |
| 工作溫度（℃） | -40 | 20 | 85 | 工業級設計 | |
| 工作頻段（MHz） | 2402 | - | 2480 | 支持藍牙協議標準頻段 | |
| 功耗 | 發射電流（mA） | 40 | - | 48 | |
| 關機電流（uA） | - | 150 | - | 僅VBAT供電時 | |
| 最大發射功率（dBm） | - | 9 | 10 | ||
| 接收靈敏度（dBm） | - | -96 | - | BER | |
| 引腳序號 | 引腳名稱 | 引腳方向 | 引腳用途 |
| 1 | PIO[20] | I/O | 可編程I/O口20，其它功能：PCM_DOUT1 |
| 2 | PIO[19] | I/O | PIO[19] |
| 3 | PIO[18] | I/O | I2S位數據輸出、PIO[18] |
| 4 | PIO[17] | I/O | I2S幀時鐘輸出、PIO[17] |
| 5 | PIO[16] | I/O | I2S位時鐘輸出、PIO[16] |
| 6 | PIO[15] | I/O | I2S系統時鐘輸出、PIO[15] |
| 7 | VBAT_SENSE | Analog | 電池電壓檢測 |
| 8 | USB_DN | - | 全速USB接口DN |
| 9 | USB_DP | - | 全速USB接口DP |
| 10 | VCHG | P | 內部電源調節器和充電器電壓輸入,4.0~6.5V |
| 11 | VCHG_SENSE | Analog | 充電器輸入電壓檢測引腳，使用內部充電器或沒有充電器時，此引腳與VCHG引腳連接。 |
| 12 | CHG_EXT | Analog | 外部充電器晶體管電流控制。 |
| 13 | SYS_CTRL | I | 通常連接到一個開關按鈕PIO[0]，在出倉狀態下上升沿power_on模式，下降沿power_off模式，開機自動進入配對狀態 |
| 14 | VBAT | P | 電池電源輸入，3.0~4.6V |
| 15 | GND | G | GND |
| 16 | LED[0] | Analog/DO | 模擬/數字輸入、開漏LED輸出。配對狀態下與LED1交替閃爍 |
| 17 | LED[1] | Analog/DO | 模擬/數字輸入、開漏LED輸出。配對狀態下與LED0交替閃爍，連接藍牙后常亮 |
| 18 | LED[2] | Analog/DO | 模擬/數字輸入、開漏LED輸出 |
| 19 | LED[4] | Analog/DO | 模擬/數字輸入、開漏LED輸出 |
| 20 | LED[5] | Analog/DO | 模擬/數字輸入、開漏LED輸出 |
| 21 | GND | - | GND |
| 22 | 1V8 | P | 1.8V電源輸出 |
| 23 | VDD_PADS1 | P | 1.8V/3.3V PIO電壓輸入 |
| 24 | VDD_PADS3 | P | 1.8V/3.3V PIO電壓輸入 |
| 25 | PIO[4] | I/O | 短按下一曲，長按音量加(需要出倉+媒體播放條件下)，用戶可編程 |
| 26 | PIO[3] | I/O | 短按上一曲，長按音量減(需要出倉+媒體播放條件下)，用戶可編程 |
| 27 | PIO[6] | I/O | PIO[6] |
| 28 | PIO[5] | I/O | 出倉狀態下可用，短按LED0、LED1、LED2閃爍，用戶可編程 |
| 29 | PIO[8] | I/O | PIO[8] |
| 30 | PIO[7] | I/O | PIO[7] |
| 31 | PIO[2] | I/O | PIO[2]，短按播放暫停，長按3秒進入配對，長按6秒清空配對列表，用戶可編程 |
| 32 | RESET/PIO[1] | I/O | 復位、PIO[1] |
| 33 | PIO[60] | I/O | PIO[60] |
| 34 | NC | - | - |
| 35 | NC | - | - |
| 36 | SPK-LN | Analog | DAC音頻差分輸出左聲道負極 |
| 37 | SPK-LP | Analog | DAC音頻差分輸出左聲道正極 |
| 38 | GND | - | GND |
| 39 | MIC_BIAS | Analog | 麥克風偏置電壓輸出，1.5~2.1V |
| 40 | MIC2_N | Analog | 麥克風差分輸入右聲道負極，默認固件未使用，用戶可編程 |
| 41 | MIC2_P | Analog | 麥克風差分輸入右聲道正極，默認固件未使用，用戶可編程 |
| 42 | MIC1_N | Analog | 麥克風差分輸入左聲道負極，默認固件未使用，用戶可編程 |
| 43 | MIC1_P | Analog | 麥克風差分輸入左聲道正極，默認固件未使用，用戶可編程 |
| 44 | GND | - | GND |
| 45 | GND | - | GND |
| 46 | RF_PORT | - | 藍牙天線接口 |
| 47 | GND | - | GND |
| 48 | PIO[14] | I/O | PIO[14] |
| 49 | PIO[13] | I/O | PIO[13] |
| 50 | PIO[12] | I/O | PIO[12] |
| 51 | PIO[11] | I/O | PIO[11] |
| 52 | PIO[10] | I/O | PIO[10] |
| 53 | PIO[09] | I/O | PIO[09] |
| 54 | PIO[21] | I/O | PIO[21]、音頻功放使能，客戶可編程 |
特別注意： 以上引腳的功能描述僅針對于我司出廠時的默認程序功能，如需其它功能可聯系我司定制，自行開發引腳功能請參考QCC3040的官方用戶手冊。 | |||
