藍牙協議：BLE5.0
通信距離：150m

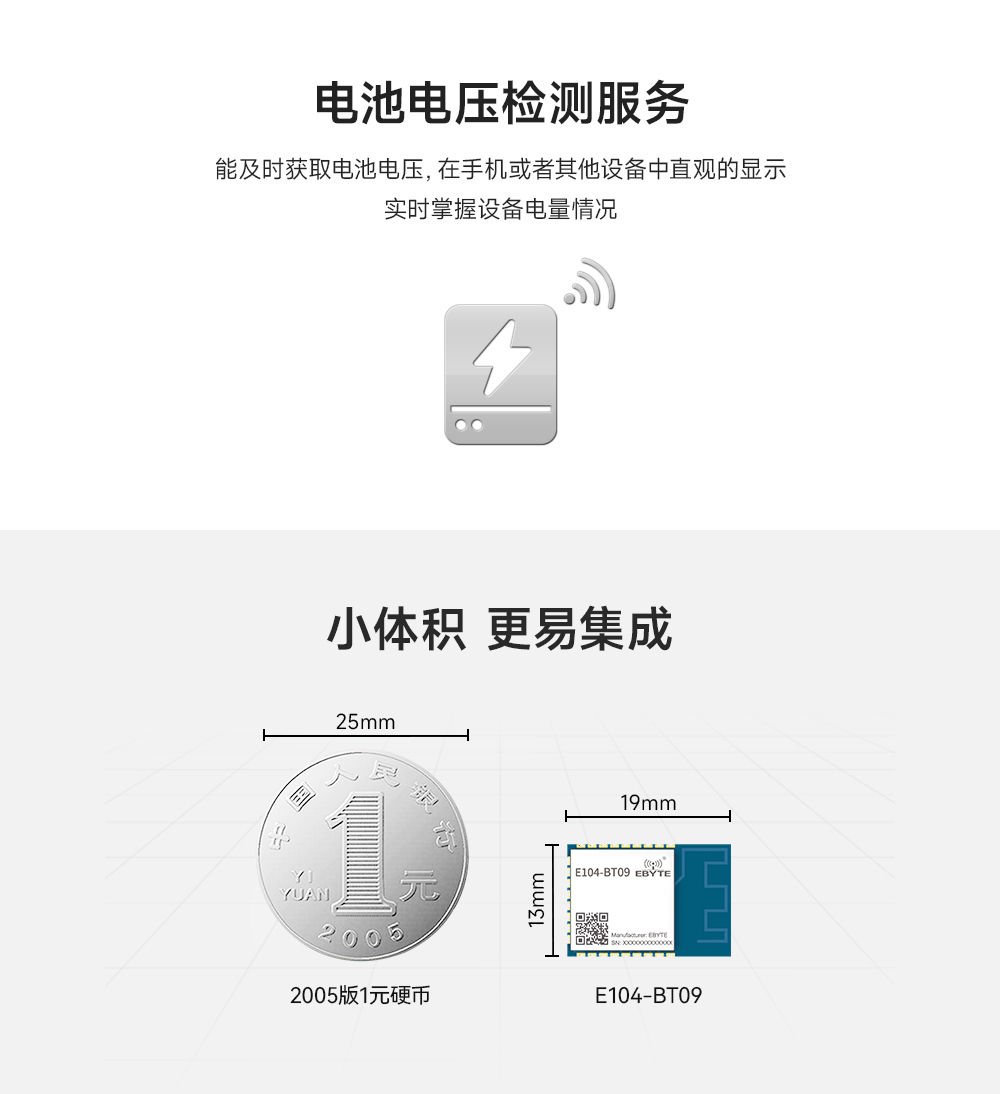

產品尺寸：13*19mm 產品重量：0.8±0.1g

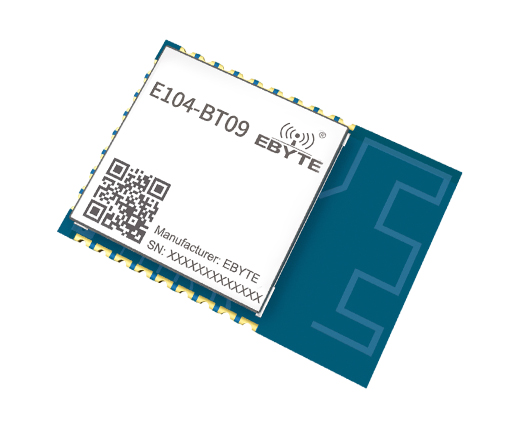

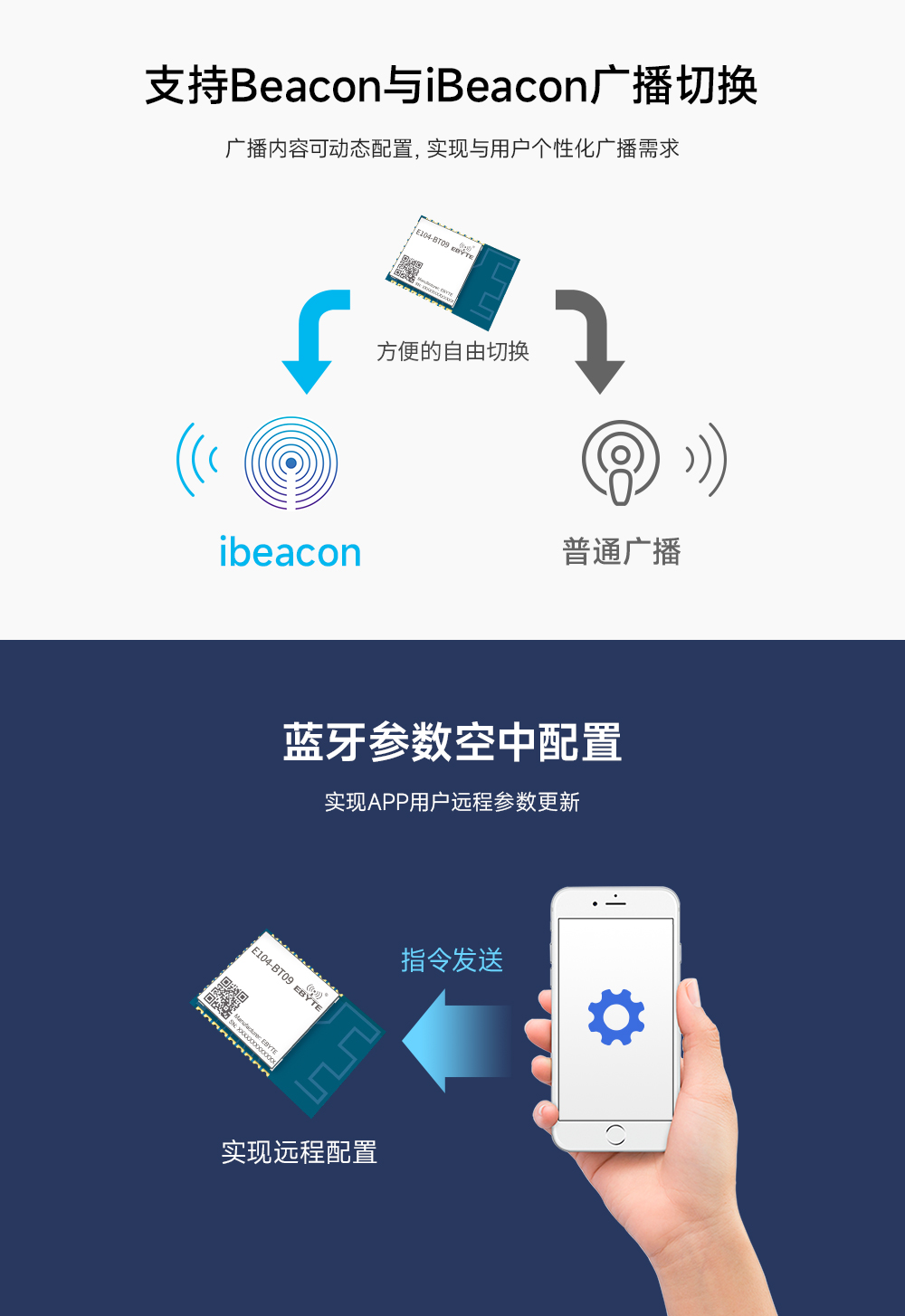

產品簡介：E104-BT09藍牙模塊是億佰特基于泰凌微TLSR8208BER芯片研發的BLE5.0協議的藍牙轉串口從機模塊，體積小、功耗低，工作在2.4GHz頻段。該藍牙模塊使用通用的AT指令設置參數，操作簡單快捷。該藍牙轉串口模塊支持從機角色、藍牙廣播、數據透傳、空中配置。該藍牙模塊可廣泛應用于智能穿戴、家庭自動化、家庭安防、個人保健、智能家電、配飾與遙控器、汽車、照明、工業互聯網、智能數據采集、智能控制等領域。最大支持波特率 1000000bps 的數據傳輸。

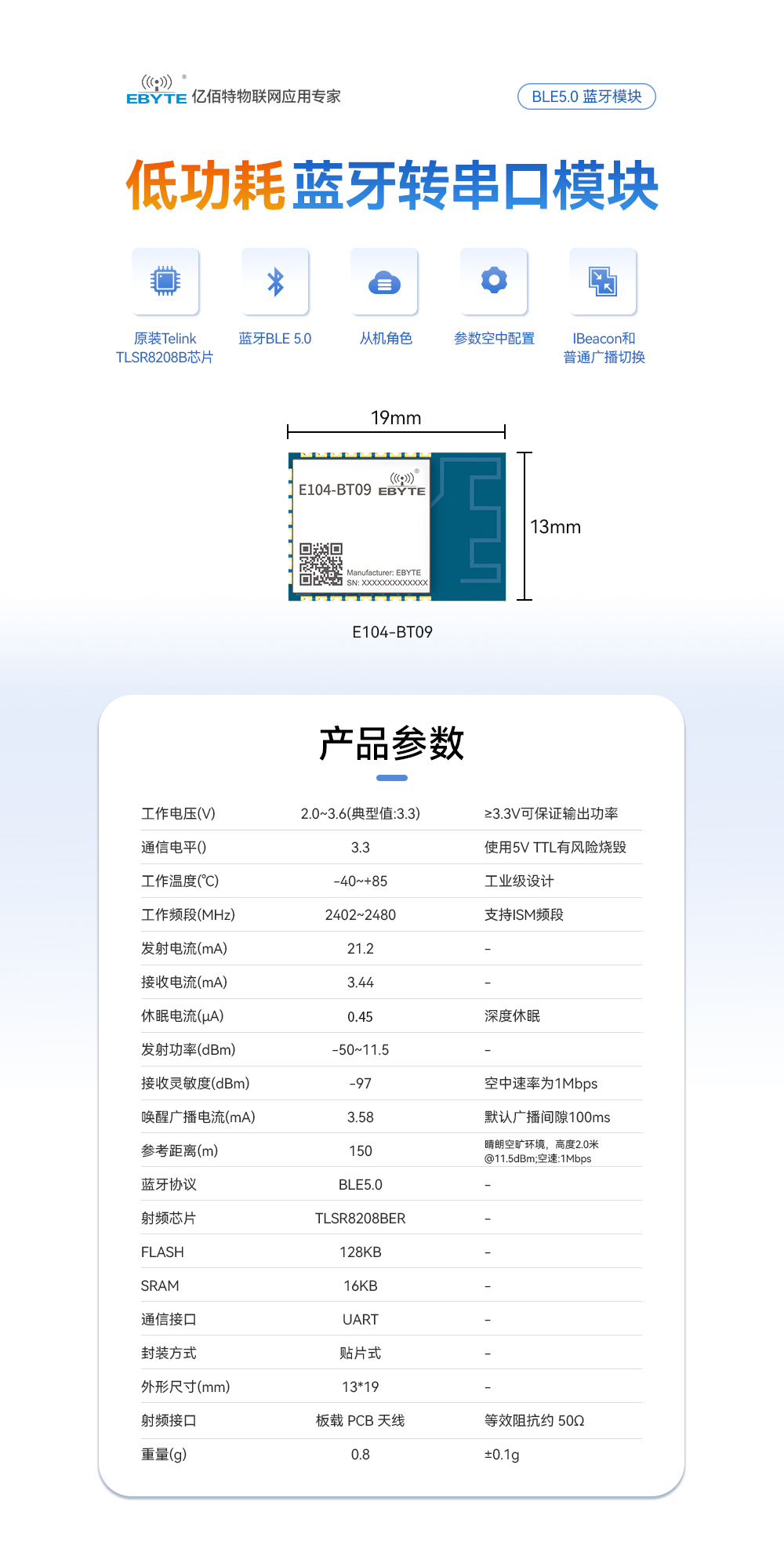

| 主要參數 | 性能 | 備注 | |
| 最小值 | 最大值 | ||
| 電源電壓（V） | 0 | 3.6 | 超過3.6V 永久燒毀模塊 |
| 阻塞功率（dBm) | - | 0 | 近距離使用燒毀概率較小 |
| 工作溫度（℃) | -40 | +85 | 工業級 |
| 主要參數 | 性能 | 備注 | |||
| 最小值 | 典型值 | 最大值 | |||
| 工作電壓 | 2.0 | 3.3 | 3.6 | ≥3.3V 可保證輸出功率 | |
| 通信電平(V) | - | 3.3 | - | 使用5V電平有風險燒毀 | |
| 工作溫度（℃) | -40 | - | +85 | 工業級設計 | |
| 工作頻段（MHz) | 2402 | - | 2480 | 支持ISM頻段 | |
| 功耗 | 發射電流（mA） | - | 21.2 | - | 默認廣播間隙 1S |
| 接收電流（mA) | - | 3.44 | - | - | |

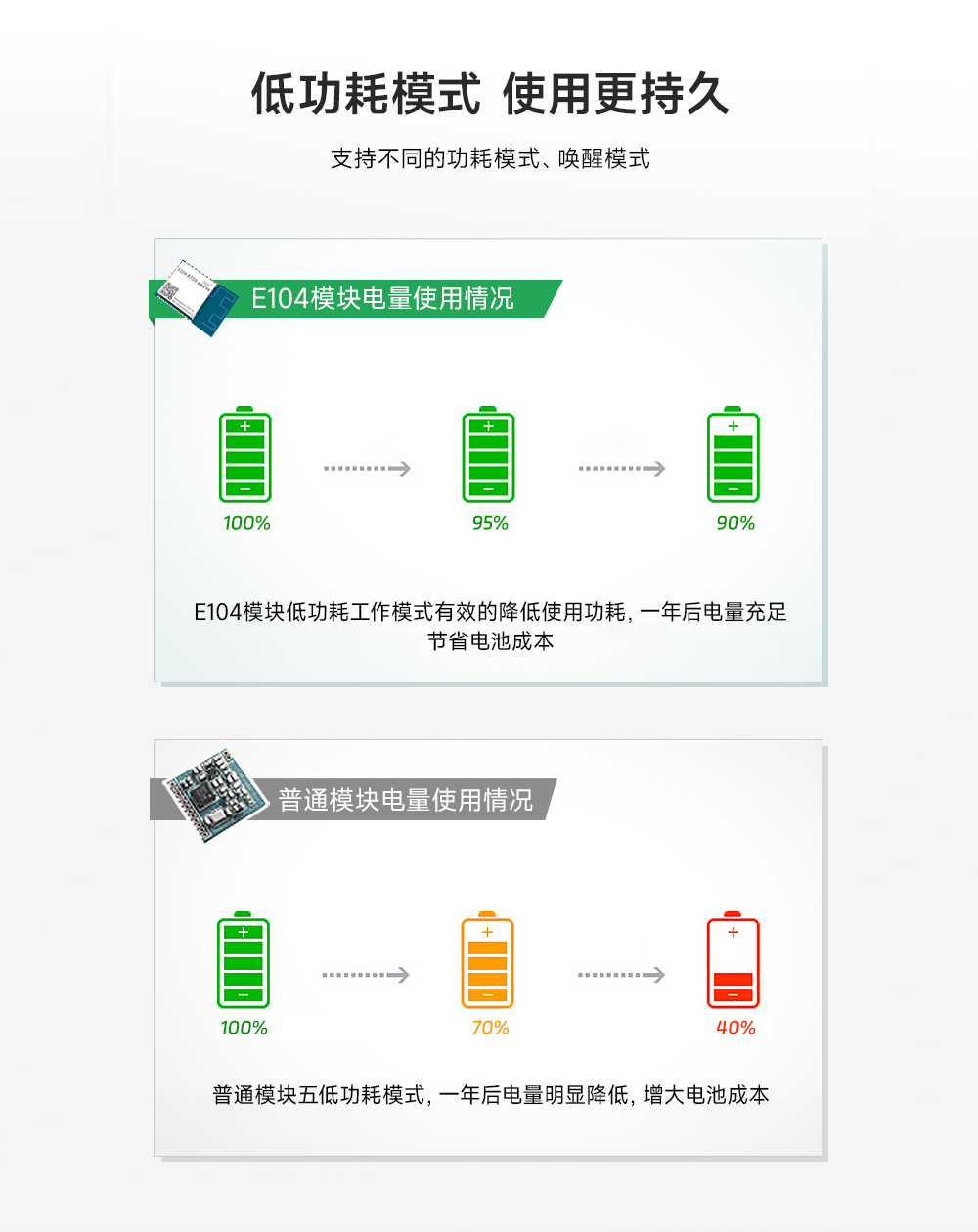

| 休眠電流（uA) | - | 0.45 | - | 深度休眠 | |
| 發射功率(dBm) | -50 | 0 | 11.5 | - | |
| 接收靈敏度（dBm) | - | -97 | - | 空中速率為1Mbps | |
| 喚醒廣播電流（mA) | - | 3.58 | - | 默認廣播間隙 100ms | |
| 主要參數 | 描述 | 備注 |
| 參考距離 | 150m | 晴朗空曠環境，高度 2.0 米; @11.5dBm;空速：1Mbps |
| 藍牙協議 | BLE 5.0 | - |
| 射頻芯片 | TLSR8208BER | - |
| FLASH | 128KB | - |
| SRAM | 16KB | - |
| 通信接口 | UART | - |
| 封裝方式 | 貼片式 | - |

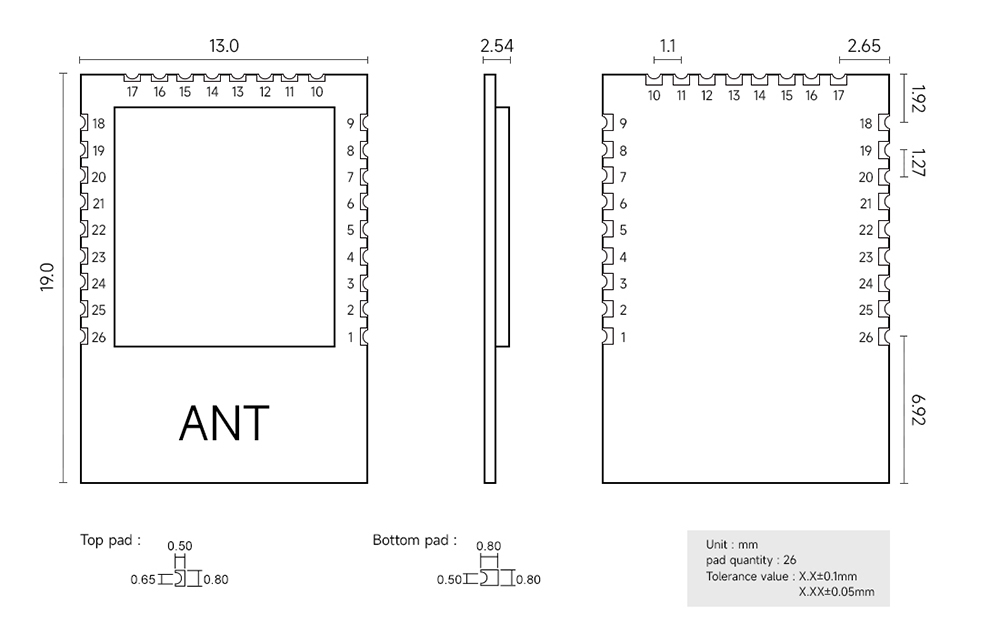

| 外形尺寸 | 13*19mm | - |
| 射頻接口 | 板載 PCB 天線 | 等效阻抗約50Ω |
| 重量 | 0.8g | ±0.1 |
| 引腳序號 | 引腳定義 | 芯片引腳 | 引腳方向 | 備注 |
| 1 | GND | GND | - | 模塊地 |
| 2 | TXD | PD0 | 輸出 | 串口發送引腳 |
| 3 | RXD | PD1 | 輸入 | 串口接收引腳 |
| 4 | NC | PD2 | - | - |
| 5 | NC | PD4 | - | - |
| 6 | NC | PD6 | - | - |
| 7 | NC | PD7 | - | - |
| 8 | SWS | PA3 | 程序下載 | |
| 9 | NC | PA7 | - | - |
| 10 | NC | PB3 | - | - |
| 11 | RESTORE | PB2 | 輸入 | 內部上拉，下降沿，然后保持低電平至少 5 秒后，所有參數恢復出廠設置并自動重啟模塊。 |
| 12 | GND | DVSS | - | 模塊地 |
| 13 | WKP | PB4 | 輸入 | 默認低電平，低功耗模式，串口不能通信。拉高進入正常工作模式，串口可以通訊。 |
| 14 | VBAT | VBAT | 輸入 | 電池電源，支持 1.8 V ~ 4.2 V 供電 |
| 15 | AVDD3 | AVDD3 | 輸入 | 電源正極，1.8V~3.6V，推薦 3.3V 供電 |
| 16 | GND | GND | - | 模塊地 |
| 17 | BAT_DET | PB5 | 輸入 | 電池電壓檢測，詳情查看 6.2.16 節 |
| 18 | LINK | PB6 | 輸出 | 連接狀態指示引腳，高電平表示已連接，低電平表示斷開連接 |
| 19 | NC | PB7 | - | - |
| 20 | GND | GND | - | 模塊地 |
| 21 | GND | GND | - | 模塊地 |
| 22 | NC | PC0 | - | - |
| 23 | NC | PC1 | - | - |
| 24 | GND | GND | - | 模塊地 |
| 25 | GND | GND | - | 模塊地 |
| 26 | RESET | RESETB | 輸入 | 復位引腳，低電平有效，內部上拉 |
